Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the ashtray from the I/P. Refer to ASHTRAY REPLACEMENT .
  2. Rotate the ashtray lamp socket clockwise.
  3. Remove the lamp socket from the housing.
  4. Remove the bulb from the ashtray lamp socket.

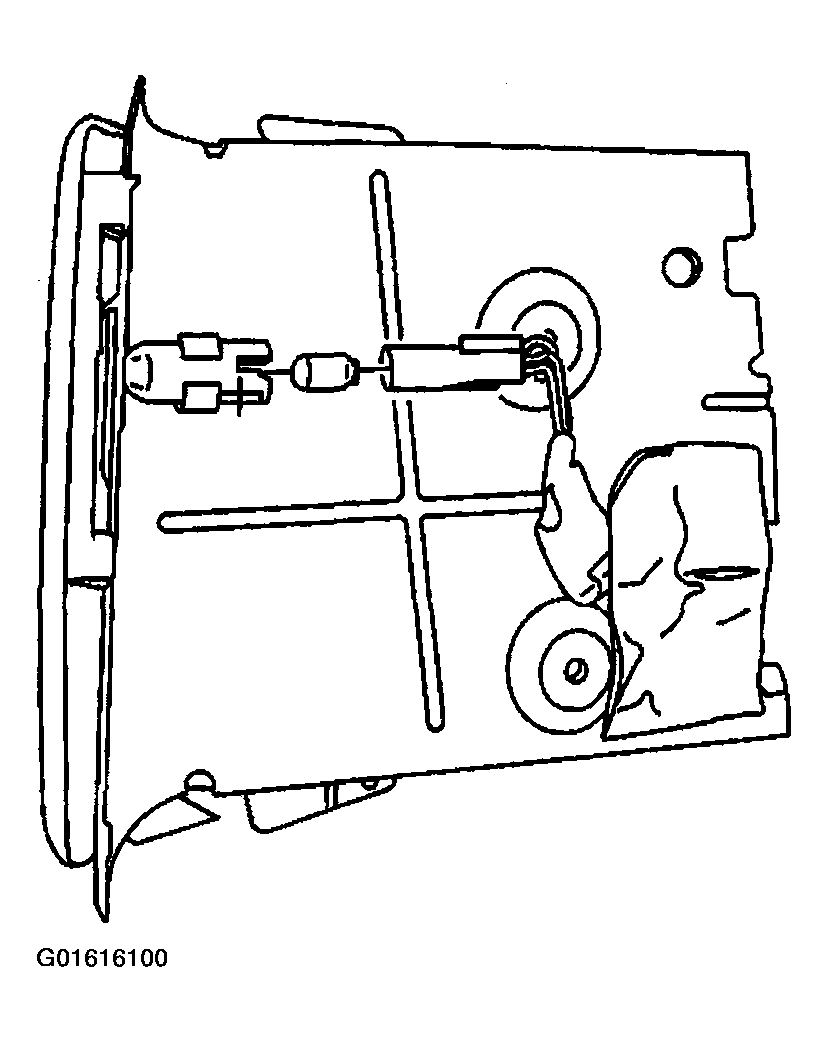

    Fig 1: Ashtray Lamp & Bulb
    G01616100Courtesy of GENERAL MOTORS CORP.
