Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the stabilizer shaft link to lower control arm retaining nut.
    Fig 1: View Of Stabilizer Shaft Link Lower Retaining Nut
    GM1277170Courtesy of GENERAL MOTORS CORP.
  3. Remove the stabilizer shaft link to stabilizer shaft retaining nut.

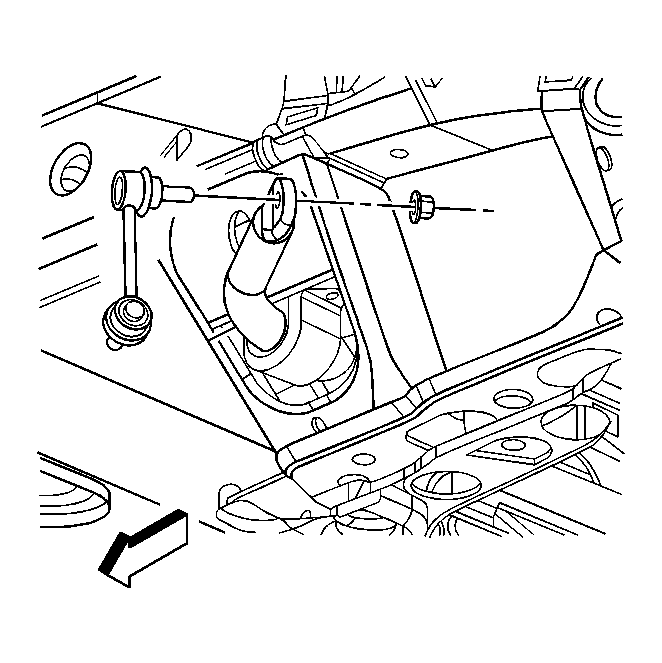

    Fig 2: View Of Stabilizer Shaft Link Retaining Nut
    GM1277724Courtesy of GENERAL MOTORS CORP.
    NOTE: Do not pry on the stabilizer shaft link. Use care when removing or installing the stabilizer shaft link in order to avoid tearing or puncturing the stabilizer shaft link boot. Damage to the stabilizer shaft link boot will lead to damage to the stabilizer shaft link.
  4. Remove the stabilizer shaft link and washer.
