Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the emblem to the grille.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the nuts that retain the emblem to the grille.

    Tighten:  Tighten the nuts to 3 N.m (27 lb in).

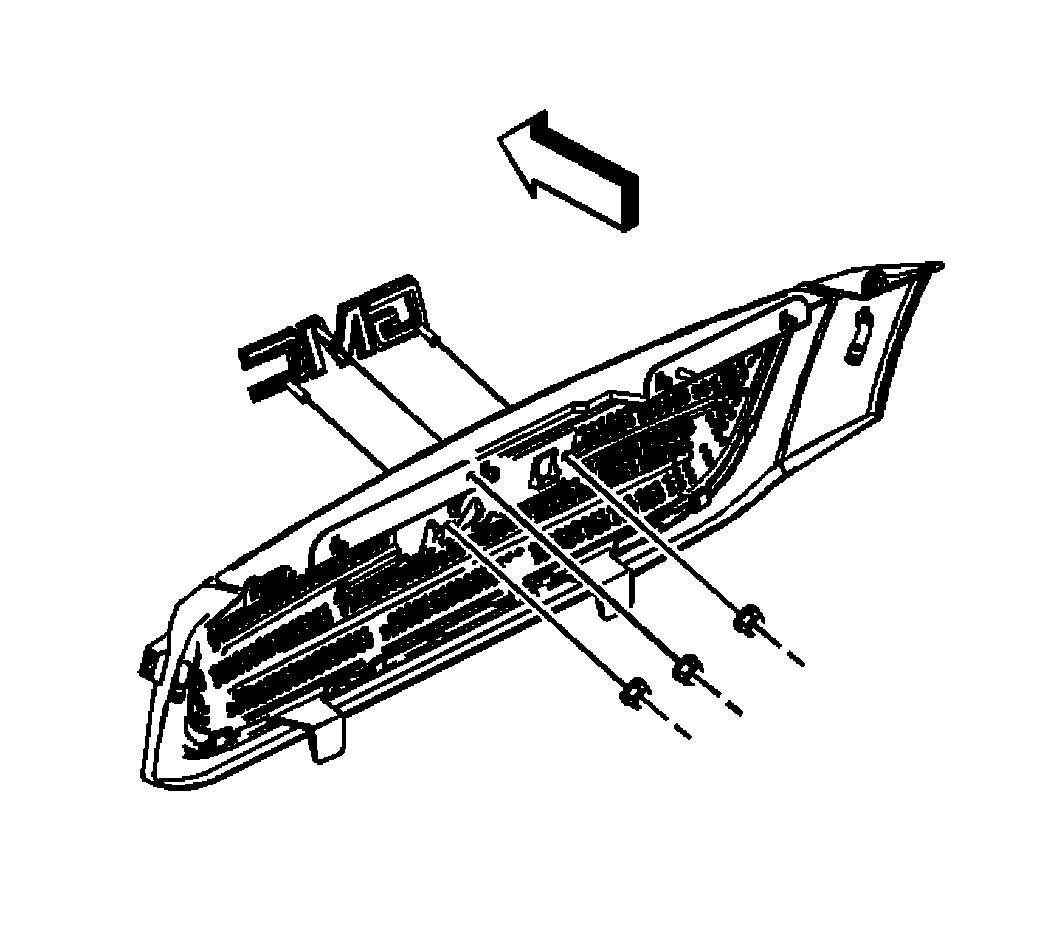

    Fig 1: Removing/Installing Grille Emblem & Retaining Nuts
    GM754908Courtesy of GENERAL MOTORS CORP.
  3. Install the grille. Refer to Grille Replacement (GMC)  or Grille Replacement (Chevrolet)  or Grille Replacement (Oldsmobile)  .
