Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door inner trim panel. Refer to TRIM PANEL REPLACEMENT -- SIDE FRONT DOOR .
  2. Remove the screws from the front door speaker.
  3. Disconnect the electrical connectors from the front door speaker.
  4. Remove the front door speaker from the front door.

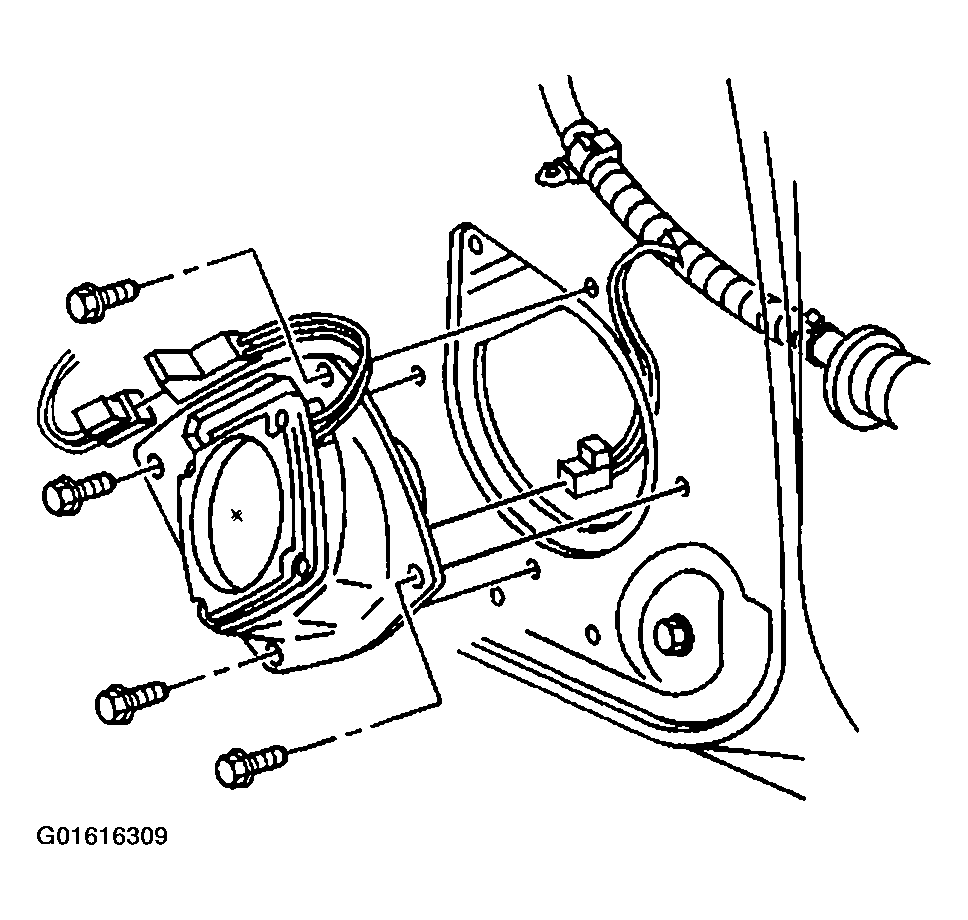

    Fig 1: Front Door Speaker, Electrical Connectors & Screws
    G01616309Courtesy of GENERAL MOTORS CORP.
