Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear speaker grille retainer tab to the rear shelf trim panel.
  2. Install the rear speaker grille into the rear shelf trim panel, pressing in until fully seated.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the nuts to the rear speaker grille.

    Tighten

    Tighten the rear speaker grille nuts to 2 N.m (18 lb in).

  4. Install the rear window trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF .

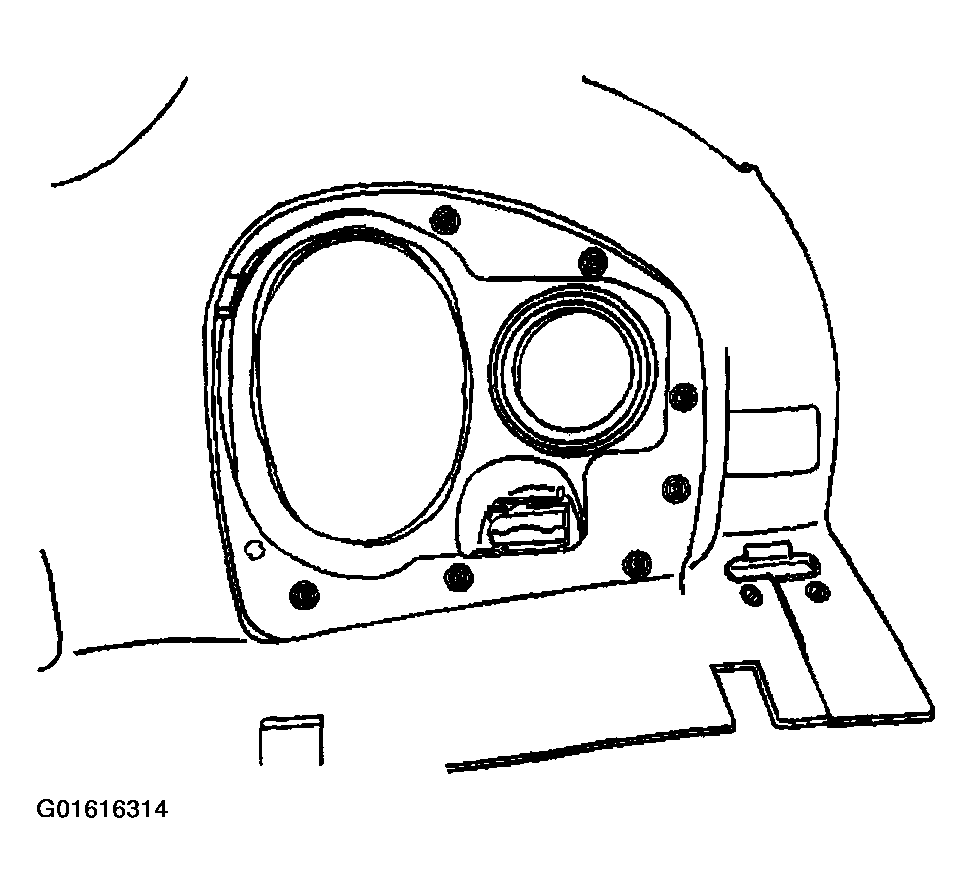

    Fig 1: Rear Speaker Grille & Nuts
    G01616314Courtesy of GENERAL MOTORS CORP.
