Tape Player Weak, Slow, or Garbled Output

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

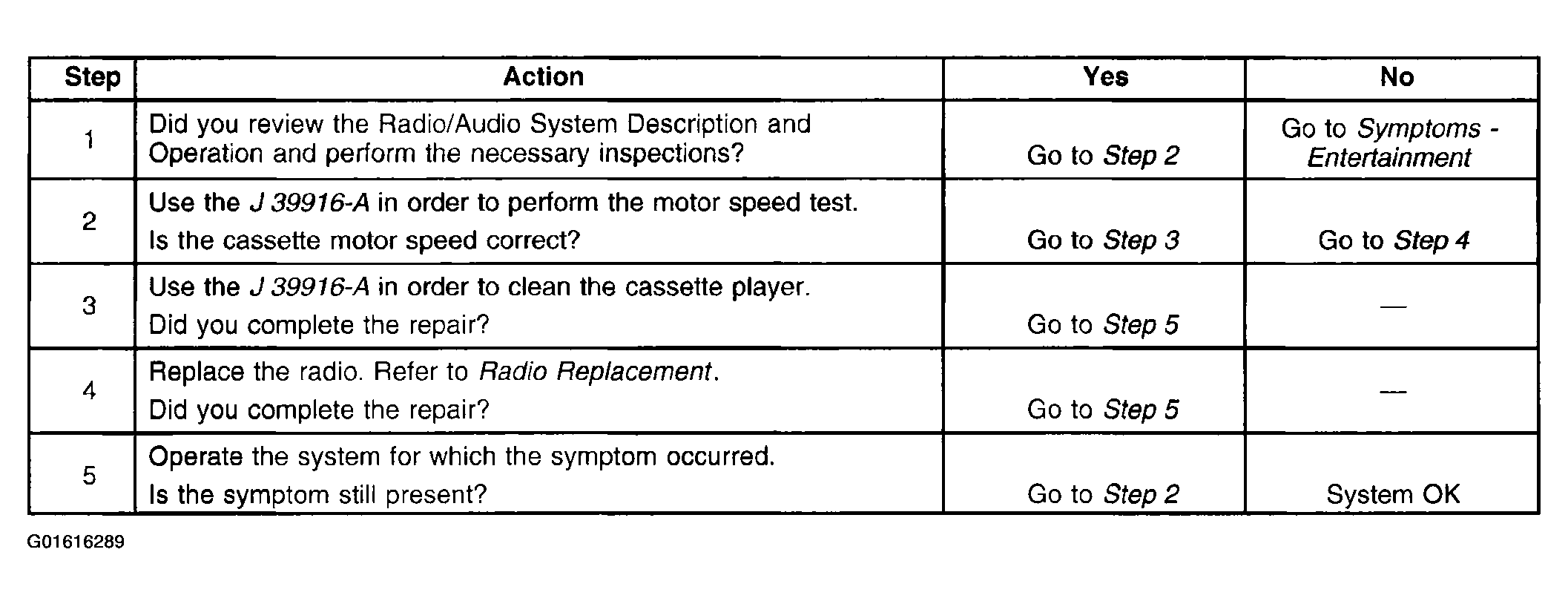

Fig 1: Tape Player Weak, Slow, or Garbled Output
G01616289Courtesy of GENERAL MOTORS CORP.
