Theft Deterrent System Connector End Views

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Theft Deterrent Control Module

Courtesy of GENERAL MOTORS CORP.

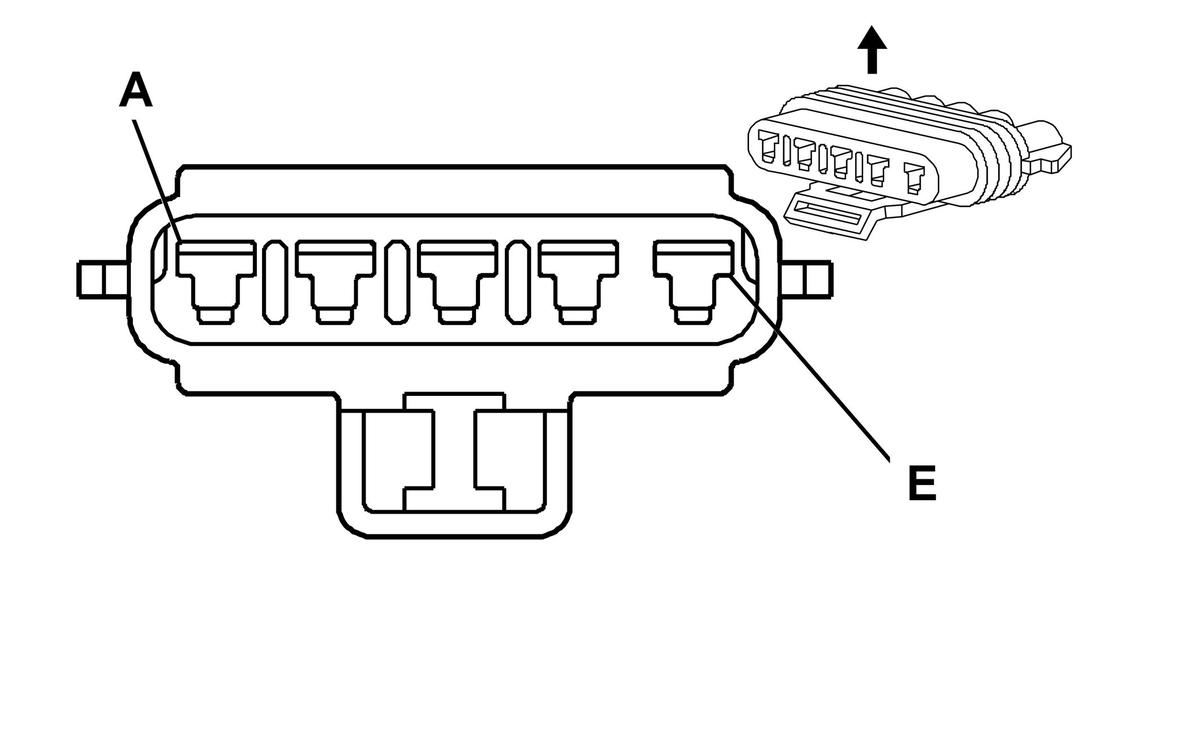

Connector Part Information		16211833 5-Way F Metri-Pack 150 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	ORN	1140	Battery Positive Voltage
B	PNK	1020	Ignition 0 Voltage
C	TAN	751	Ground
D	WHT	710	Class 2 Serial Data
E	WHT	1132	Class 2 Serial Data

Inclination Sensor

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15324229 4-Way F (BLK)
Pin	Wire Color	Circuit No.	Function
1	ORN	2740	Battery Positive Voltage
2	-	-	Not Used
3	PNK	5363	Inclination Sensor Armed Signal
4	LT BLU	5362	Inclination Sensor Alarm-On Signal

Theft Deterrent Alarm

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		10756595 4-Way F (BLK)
Pin	Wire Color	Circuit No.	Function
1	PNK	239	Ignition 1 Voltage
2	RED/WHT	1140	Battery Positive Voltage
3	TAN/BLK	5168	Alarm Enable Signal
4	BLK	2450	Ground
