Theft Deterrent System Component Views

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

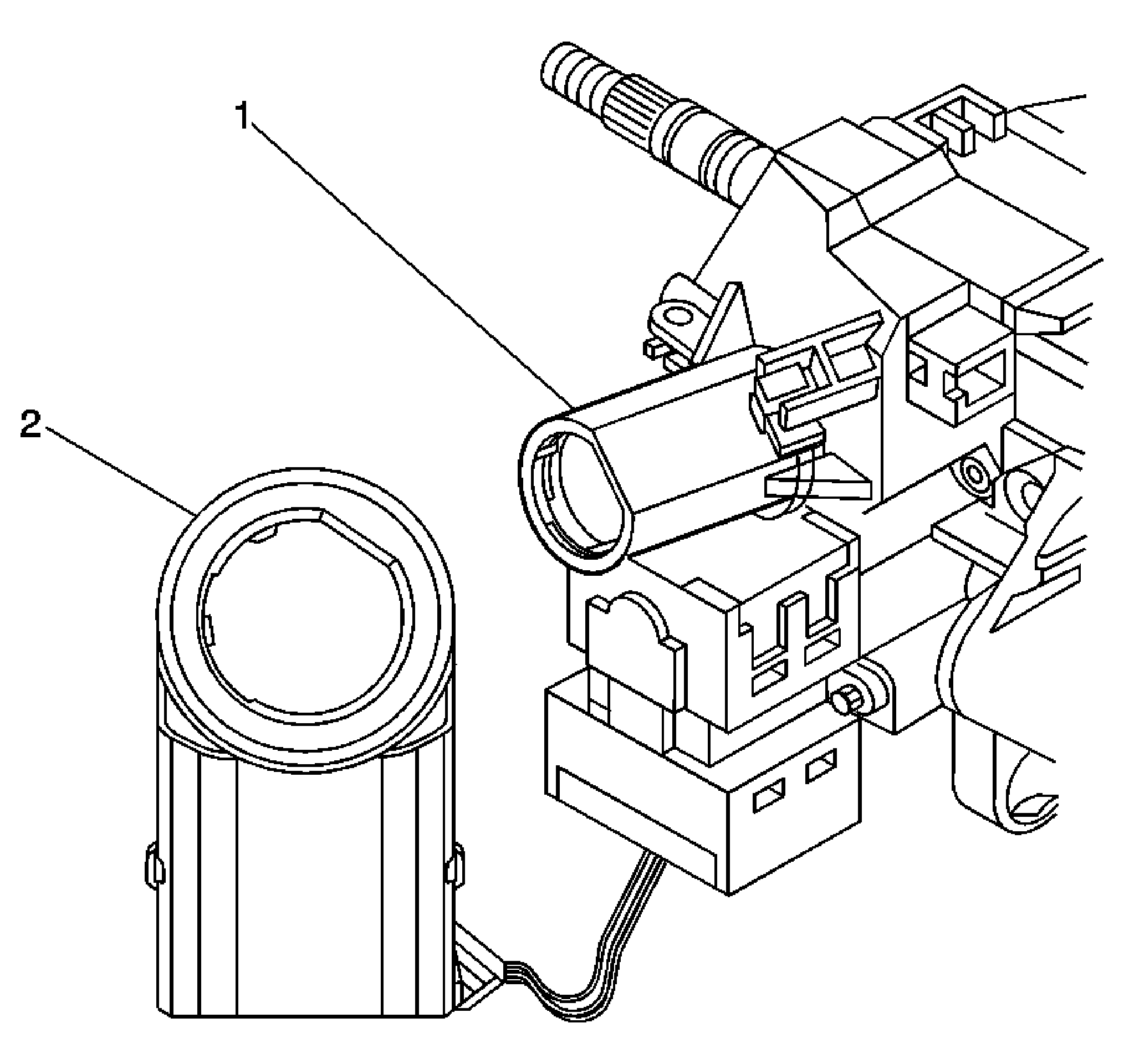

Fig 1: Steering Column Component Views
GM826553Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Lock Cylinder Case
2 Theft Deterrent Control Module
