Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

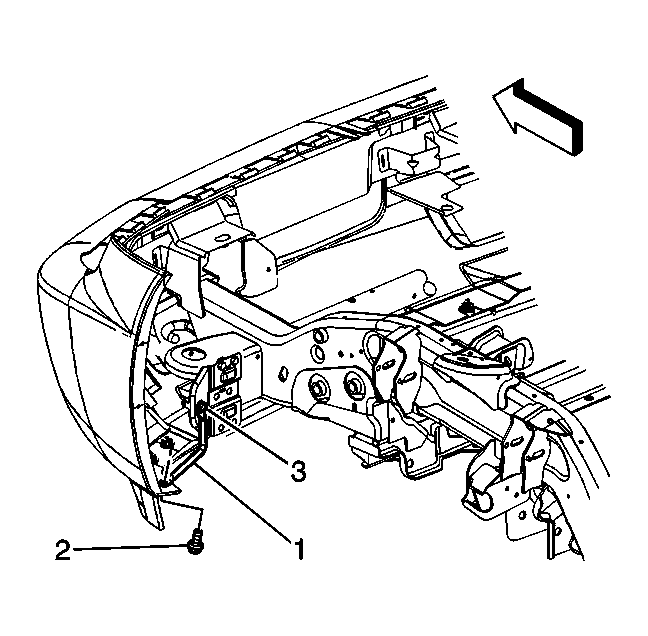

Fig 1: Installing Front Bumper Brace (Avalanche)

Courtesy of GENERAL MOTORS CORP.

Install the brace (1) to the vehicle.

NOTE: Refer to FASTENER NOTICE .

Install the 2 bolts that retain the brace to the fascia and the outboard brace plate.
Tighten:
- Tighten the front bumper fascia brace bolt (2) to 15 N.m (11 lb ft).
- Tighten the front bumper outboard brace plate bolt (3) to 9 N.m (80 lb in).
