Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the guide loop attachment cover to the upper seat belt.
  2. Remove the guide loop attachment nut.
  3. Remove the guide loop attachment from the adjuster bracket.
  4. Remove the door weatherstrip from the center pillar pinch weld flange to expose the upper trim panel.
  5. Grasp the trim panel firmly with both hands. Pull the panel away from the center pillar.

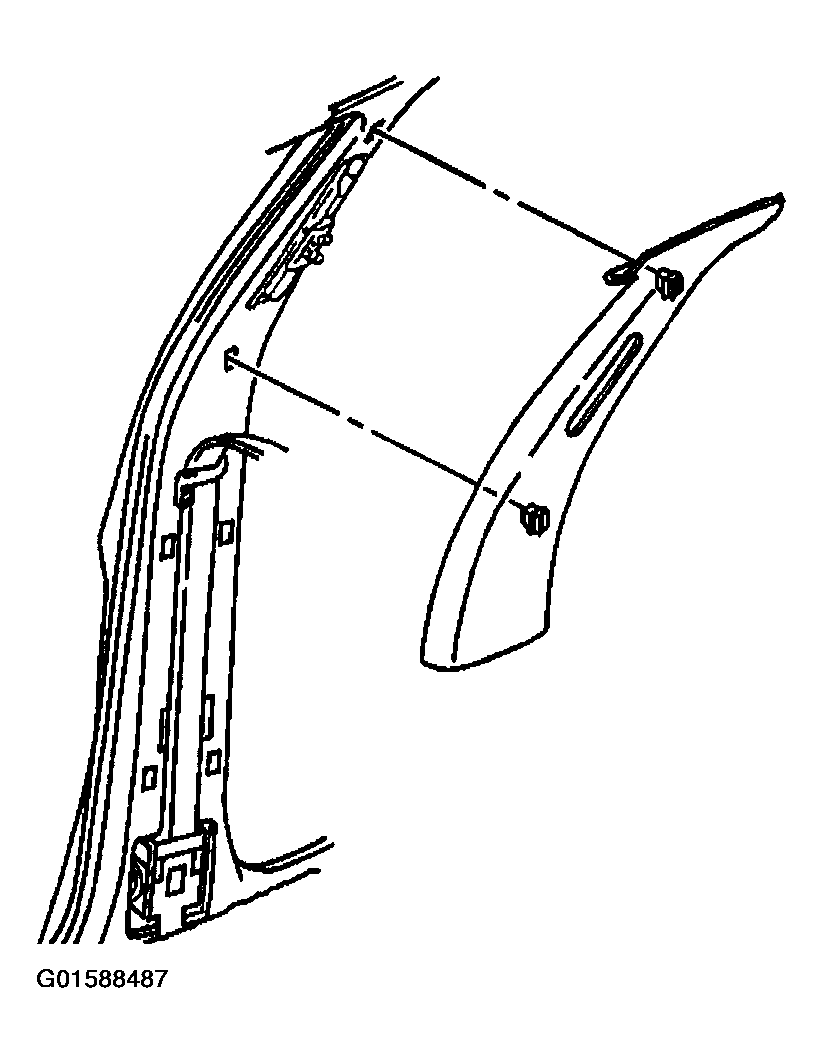

    6. Fig 1: Removing Upper Center Trim Panel
    G01588487Courtesy of GENERAL MOTORS CORP.
