Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the upper trim panel to the center pillar.
  2. Push firmly on the trim panel in order to seat the retainers.
  3. Install the guide loop attachment for the upper seat belt to the adjuster bracket.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  4. Install the attachment nut for the seat belt guide loop

    Tighten

    Tighten the nut to 42 N.m (31 lb ft).

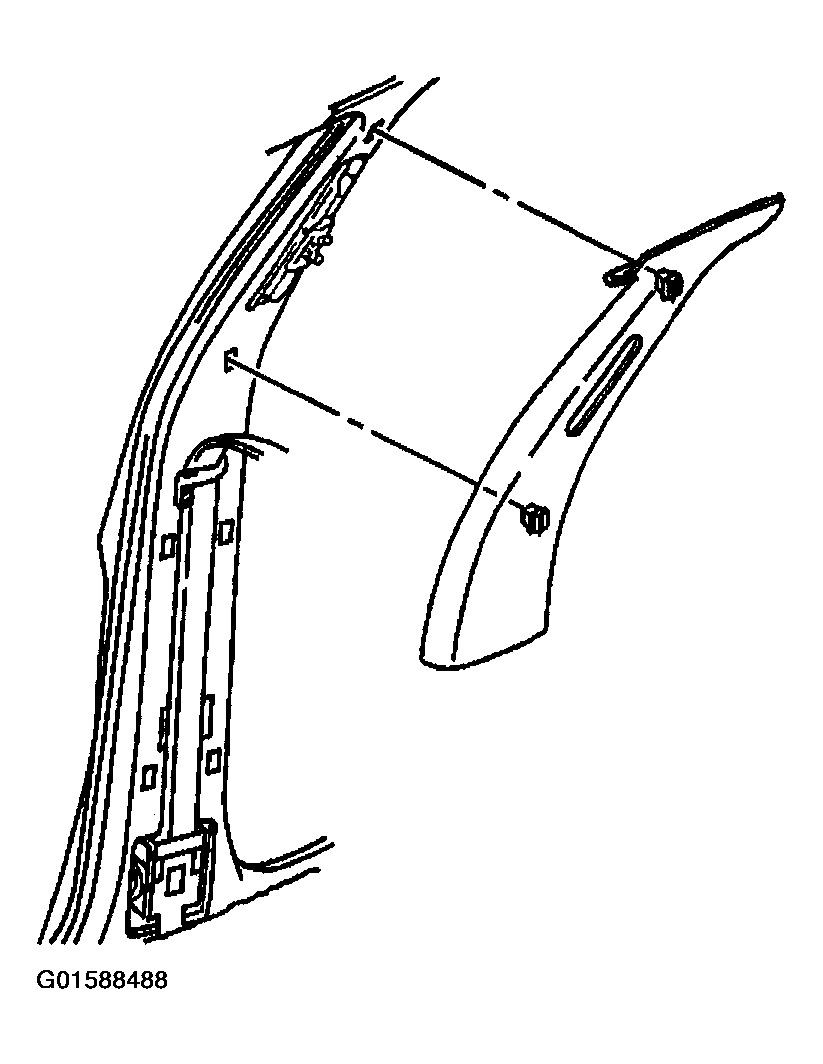

    5. Fig 1: Installing Upper Center Trim Panel
    G01588488Courtesy of GENERAL MOTORS CORP.
  5. Install the door weatherstrip to the center pillar.
