Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the panel in the vehicle.
  2. Connect the electrical cable connector for the high mount stoplamp, located on the passenger end of panel.

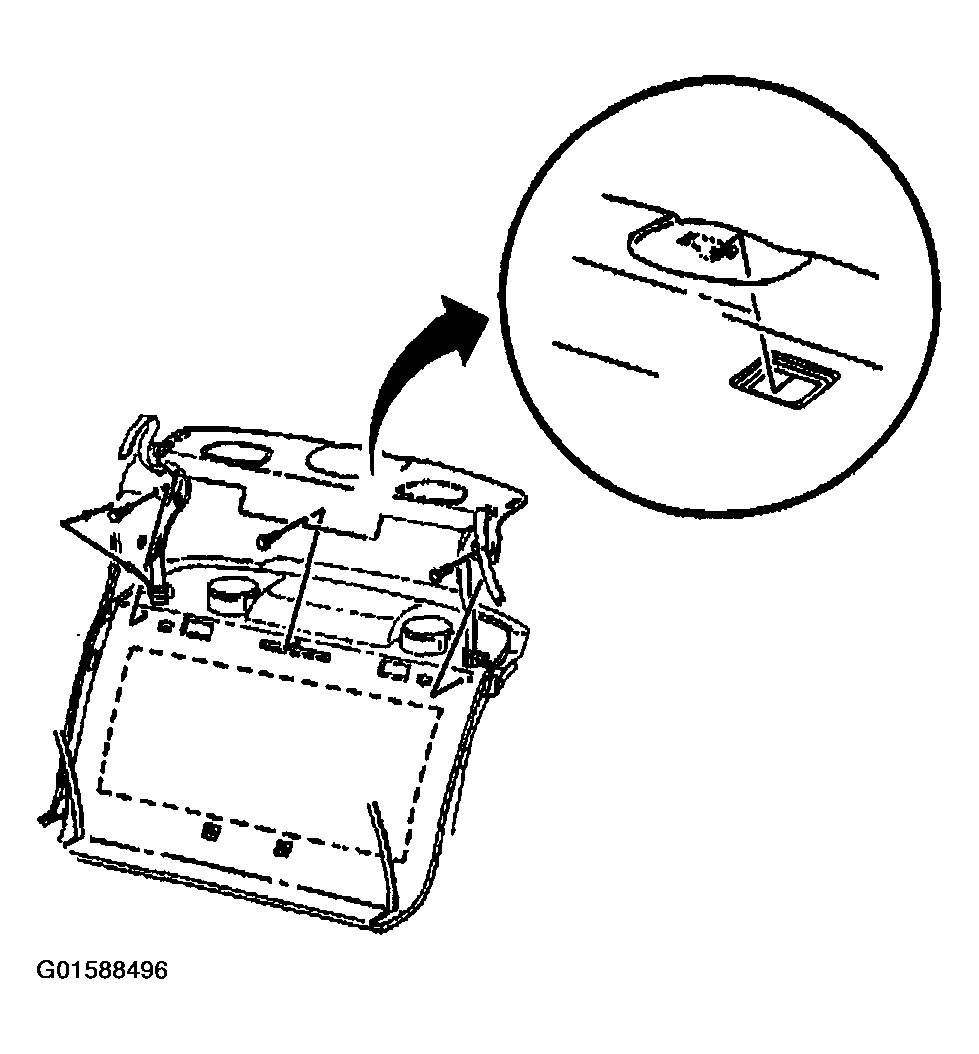

    3. Fig 1: Installing Rear Window Shelf To Vehicle
    G01588496Courtesy of GENERAL MOTORS CORP.
  3. Slide the panel rearward to engage the integral hook in the retaining hole.
  4. Lift the panel and route the seat belts through the slots in the trim panel.
  5. Install the push pins in the panel front.
  6. Install the rear quarter upper trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER  .
  7. Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR (NON-FOLDING) or SEAT BACK REPLACEMENT - REAR (FOLDING) in Seats.
  8. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.
  9. From inside the rear compartment, install the bulb in the high mount stoplamp.
    10. Fig 2: Installing Bulb In High Mount Stoplamp
    G01588497Courtesy of GENERAL MOTORS CORP.
