Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear carpet retainer. Refer to CARPET RETAINER REPLACEMENT - REAR  .
  2. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.
  3. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR (NON-FOLDING) or SEAT BACK REPLACEMENT - REAR (FOLDING) in Seats.
  4. Remove the door weatherstrip from the pinch weld flange to expose the trim panel
  5. Use J 38778 in order to disengage the push-in retainers. Remove the quarter lower trim.

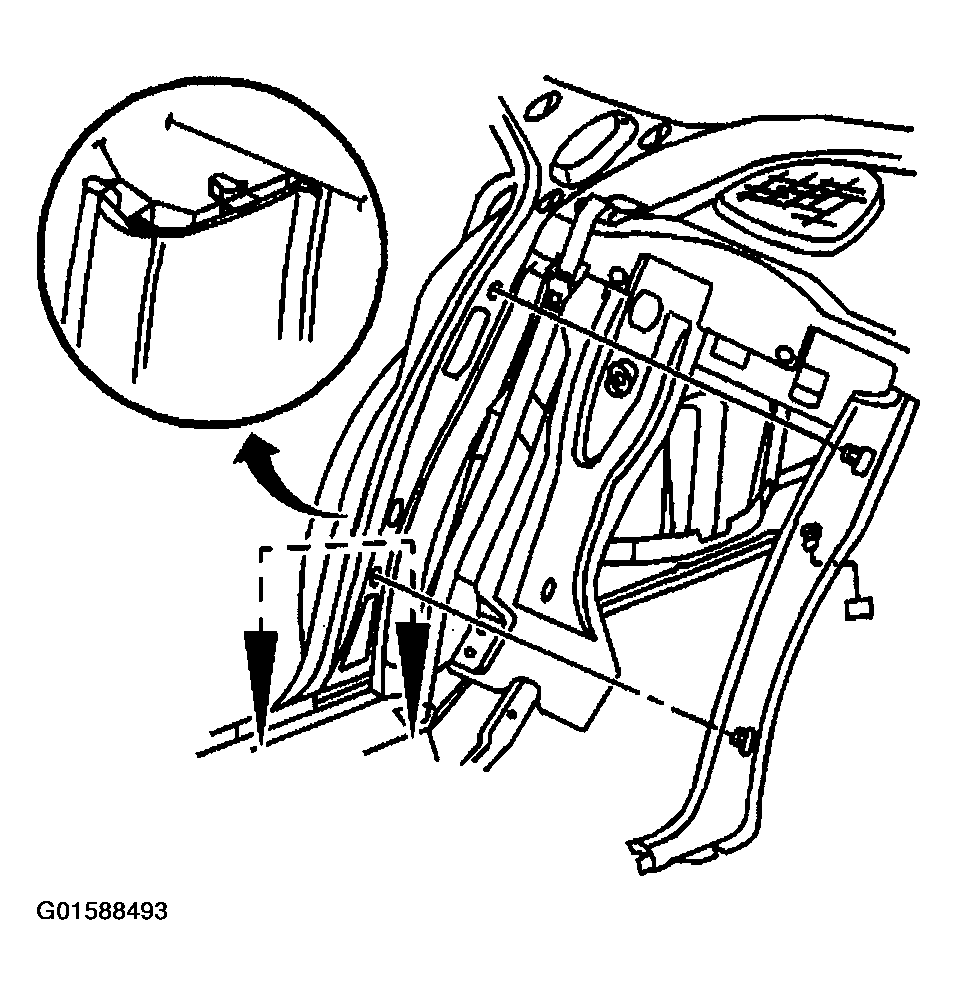

    6. Fig 1: Removing Quarter Lower Trim Panel
    G01588493Courtesy of GENERAL MOTORS CORP.
