Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat belt to the slot in the lower trim panel.
  2. Position the lower trim panel to the center pillar.

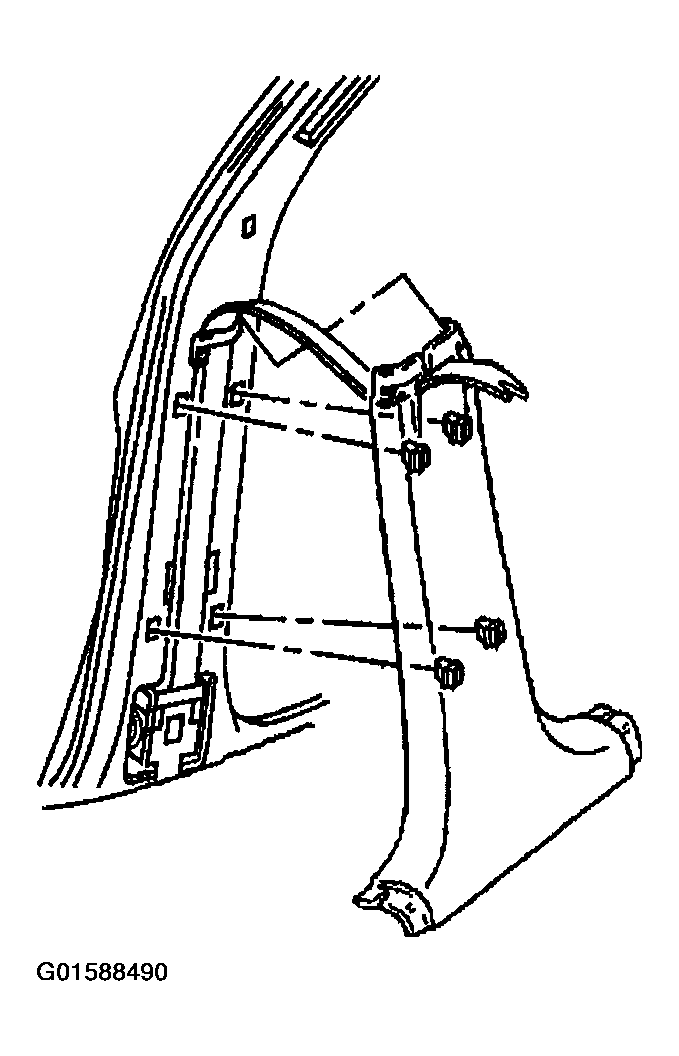

    3. Fig 1: Installing Lower Center Trim Panel
    G01588490Courtesy of GENERAL MOTORS CORP.
  3. Push firmly on the lower trim panel in order to seat the retainers.
  4. Install the front carpet retainer. Refer to CARPET RETAINER REPLACEMENT - FRONT  .
  5. Install the rear carpet retainer. Refer to CARPET RETAINER REPLACEMENT - REAR  .
  6. Install the door weatherstrip to the center pillar.
