Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Sunshades can be equipped with an illuminated vanity mirror. The illuminated vanity mirror is not serviced as a separate unit.
  1. Rotate the sunshade so that the bottom edge is pointing straight down.
  2. Remove the sunshade from the anchor.
  3. Move the sunshade rearward, about 50 mm (2 inches) until the ridge on the sunshade stem (2) is flush to the slot in the flange (1).
    4. Fig 1: Removing Sunshade From Anchor
    G01588472Courtesy of GENERAL MOTORS CORP.
  4. Pull down on the free end of the sunshade until a rectangular slot (3) appears between the flange and the retainer bezel. Maintain this pressure for the next two steps.
    IMPORTANT: The flat-bladed tool used to remove the sunshade must completely fill the slot on the sunshade flange. If there is any free play, the plastic flange will be distorted and the sunshade will not be released.
  5. Insert a flat-bladed tool in the flange slot. Hold this tool in a vertical position and maintain an upward pressure on the tool equal to the downward pressure on the sunshade.
  6. Quickly rotate the sunshade rearward approximately 100 mm (4 in). At this position you will feel a first disengagement.
  7. Maintain the upward pressure on the flat-bladed tool and now press upward on the free end of the sunshade. Then continue to rotate the sunshade towards the side door glass.
  8. Remove the flat-bladed tool and pull down on the front of the sunshade arm to separate it from the bezel.
    9. Fig 2: Inserting Flat-Bladed Tool In Flange Slot
    G01588473Courtesy of GENERAL MOTORS CORP.
  9. Disconnect the electrical connector (3), if equipped.
  10. Remove the sunshade from the vehicle.
    11. Fig 3: Removing Sunshade From Vehicle
    G01588474Courtesy of GENERAL MOTORS CORP.
  11. Insert 2 thin, flat-bladed tools into two sunshade retainer bezel slots and press inward to release the locking tabs. Pull down to remove the bezel.
    12. Fig 4: Inserting 2 Thin, Flat-Bladed Tools Into Two Sunshade Retainer Bezel Slots
    G01588475Courtesy of GENERAL MOTORS CORP.
  12. Remove the sunshade retainer bezel from the headliner.

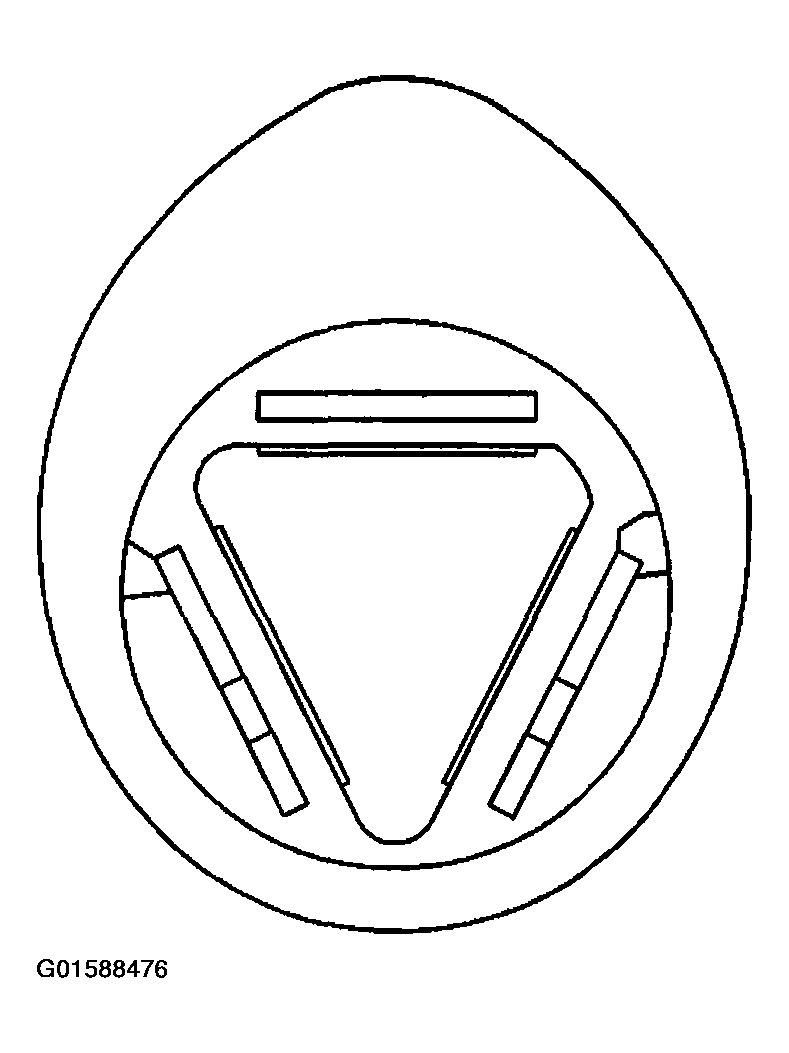

    13. Fig 5: Removing Sunshade Retainer Bezel From Headliner
    G01588476Courtesy of GENERAL MOTORS CORP.
