Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.
  2. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR (NON-FOLDING) or SEAT BACK REPLACEMENT - REAR (FOLDING) in Seats.
  3. On stationary seat back models, remove the child seat belt bracket. Refer to Bracket Replacement - Child Seat Belt Restraint System   in Seat Belts.
  4. Remove the rear window trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF  .
  5. Remove the upper quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER  .
  6. Remove the lower quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER  .
  7. On the split rear seat, remove the push-in retainers holding the rear compartment trim. Move the trim into the rear compartment.
  8. Remove the sound barrier.

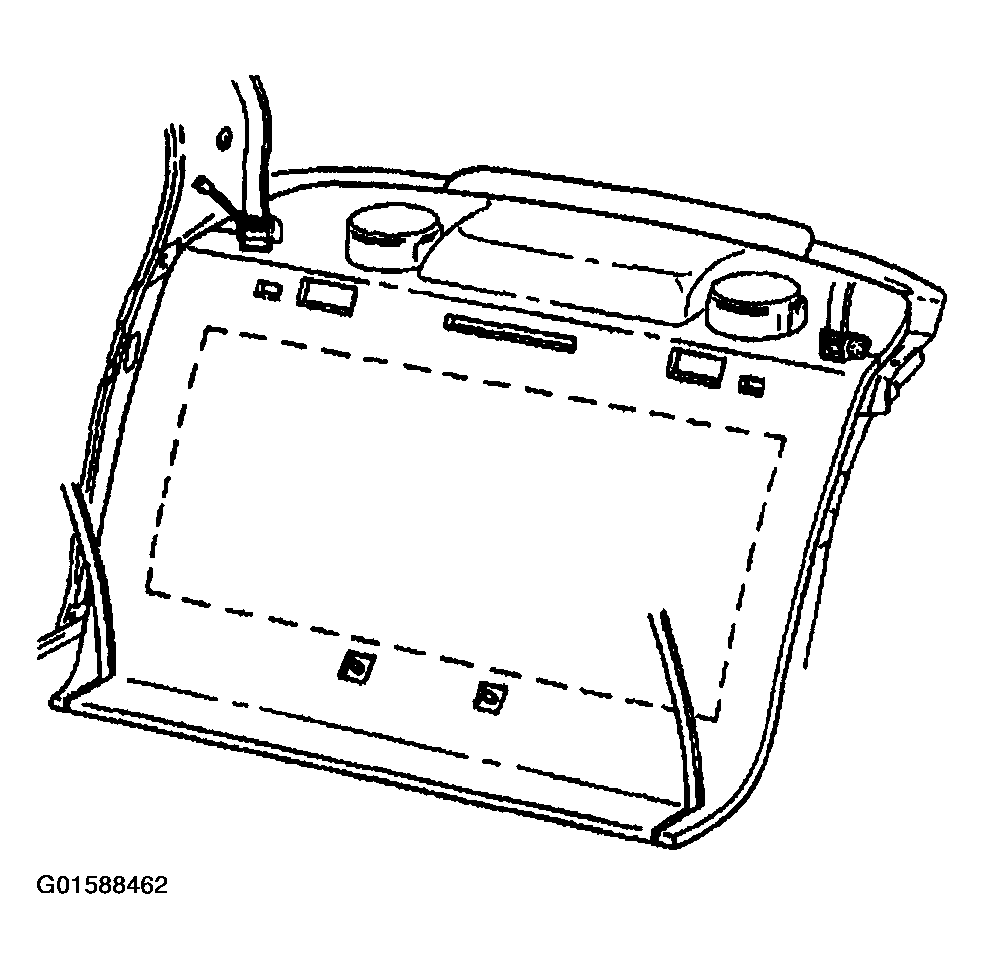

    9. Fig 1: Removing Sound Barrier
    G01588462Courtesy of GENERAL MOTORS CORP.
