Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Reposition the rear compartment trim and install the push in retainers.
  2. Install the sound barrier.

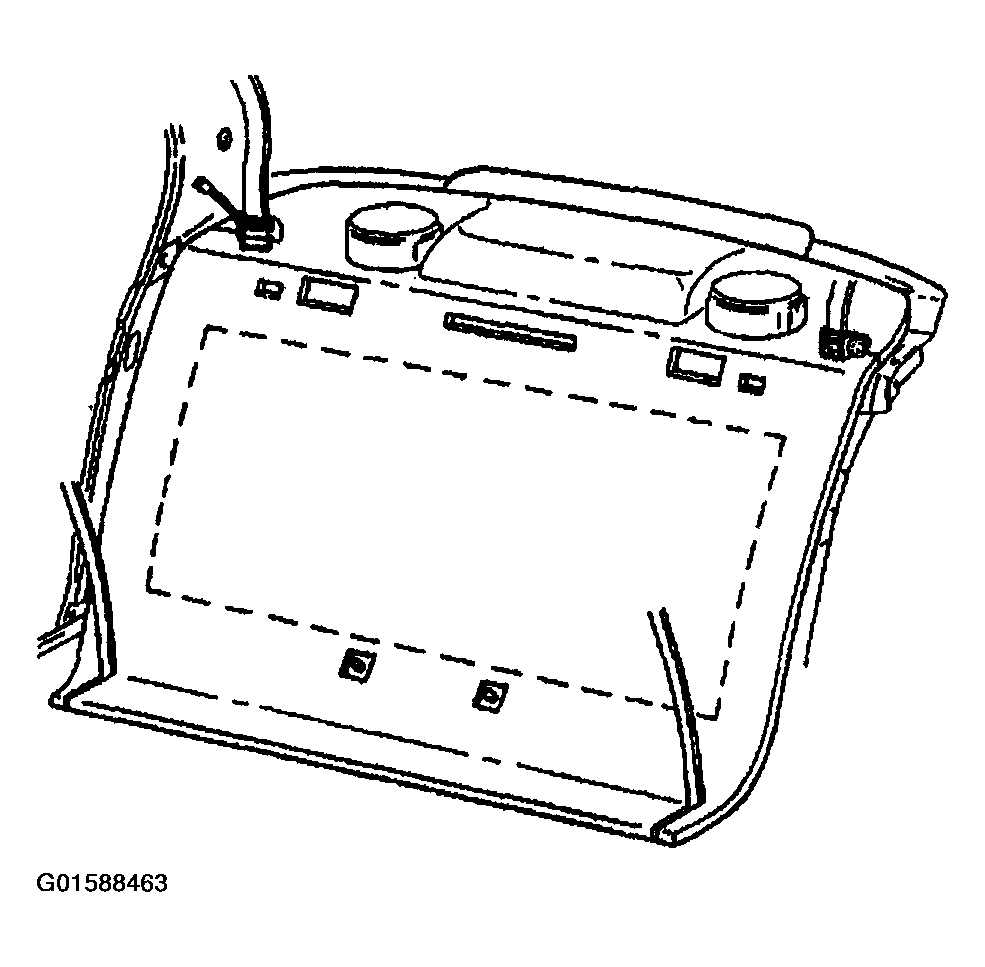

    3. Fig 1: Installing Sound Barrier
    G01588463Courtesy of GENERAL MOTORS CORP.
  3. Install the rear window trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF  .
  4. Install the upper quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER  .
  5. Install the lower quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER  .
  6. On stationary seat back models, install the child seat belt bracket. Refer to Bracket Replacement - Child Seat Belt Restraint System   in Seat Belts.
  7. Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR (NON-FOLDING) or SEAT BACK REPLACEMENT - REAR (FOLDING) in Seats.
  8. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.
