Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not attempt to repair or alter the head impact energy-absorbing material glued to the headliner or to the garnish trims. If the material is damaged, replace the headliner and/or the garnish trim. Failure to do so could result in personal injury.
  1. Remove the sunshades. Refer to SUNSHADE REPLACEMENT  .
  2. Remove the sunshade retainers (3). Refer to SUNSHADE ANCHOR REPLACEMENT  .
  3. Disconnect the electric connectors to the rear view mirror and to the front antenna.
  4. Remove the power sunroof switch, if equipped. Refer to SUNROOF SWITCH REPLACEMENT in Roof.
  5. Remove the dome lamp, if equipped. Refer to DOME LAMP REPLACEMENT in Lighting Systems.
  6. Remove the assist handles. Refer to ASSIST HANDLE REPLACEMENT - FRONT  and to ASSIST HANDLE REPLACEMENT - REAR  .
  7. Remove the side upper garnish molding from the windshield. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILLAR  .
  8. Remove the upper quarter trim panels. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER  .
  9. Pull down on the door opening weatherstrip seal on both the front and the rear doors.
  10. Remove the rear window trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF  .
  11. Disconnect the headliner electrical harness connector, located behind the right rear speaker.
  12. Disconnect the OnStar® electrical connector, if equipped.
  13. Disconnect the headliner electrical harness and the antenna lead, located behind the left rear speaker.
  14. Use J 38778 in order to remove the rear retainers (2).

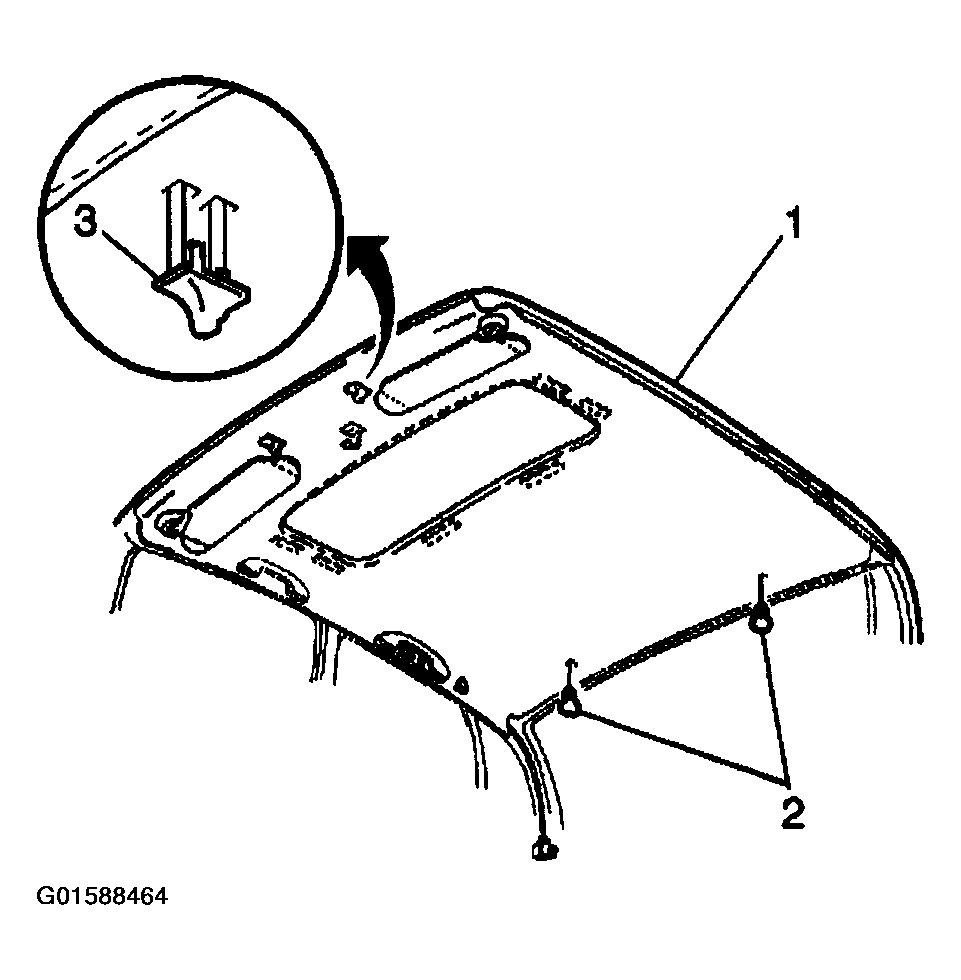

    15. Fig 1: Removing Headliner From Vehicle
    G01588464Courtesy of GENERAL MOTORS CORP.
  15. Rotate the right front seatback to a horizontal position.
  16. Remove the headliner (1) from the vehicle through the right front door.
