Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the carpet retainer. Refer to CARPET RETAINER REPLACEMENT - FRONT  .
  2. Reposition the front door weatherstrip (2) as necessary.

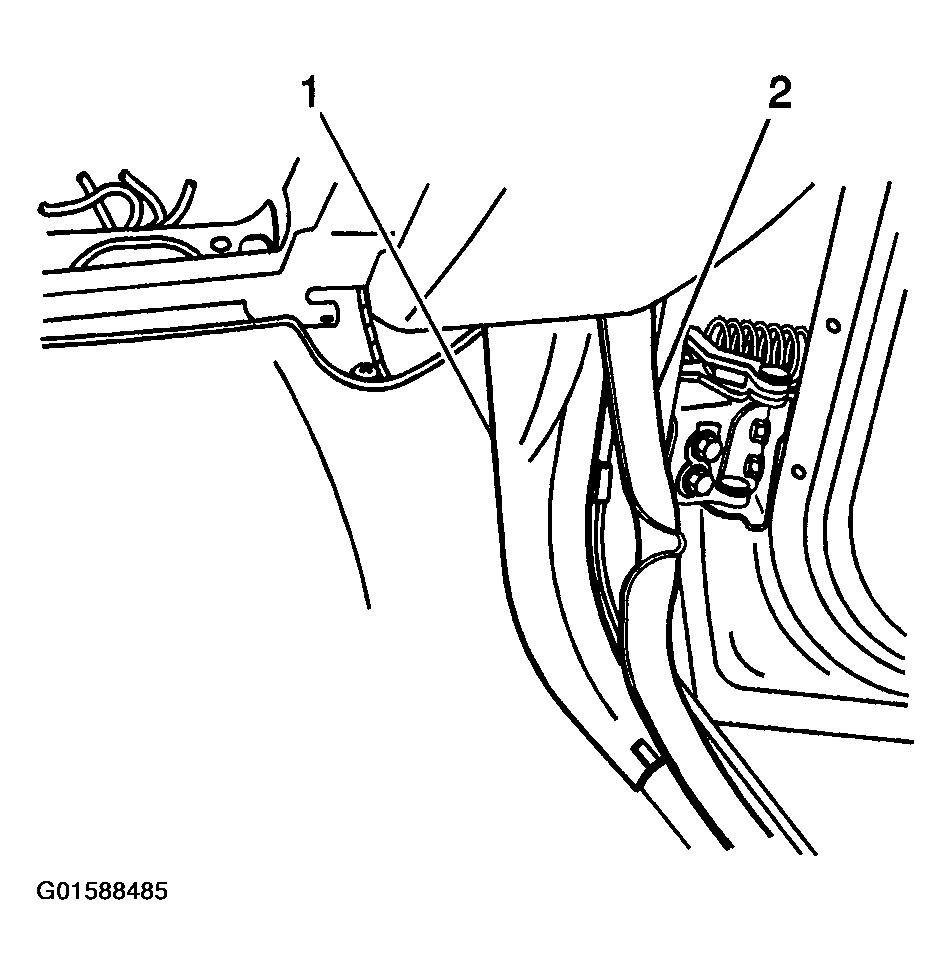

    3. Fig 1: Removing Molding From Vehicle
    G01588485Courtesy of GENERAL MOTORS CORP.
  3. Grasp the lower end of the molding (1) and pull away from the pillar.
  4. Remove the molding from the vehicle.
