Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the molding (1) in the vehicle.

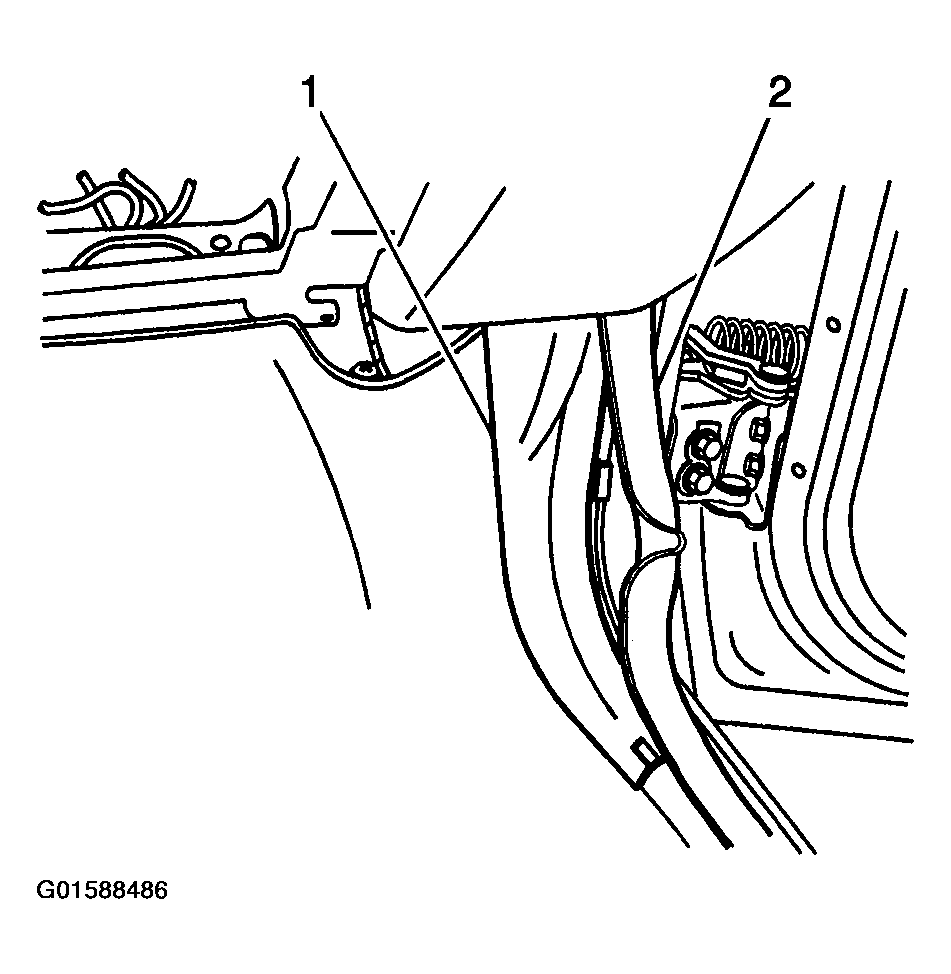

    2. Fig 1: Installing Molding To Vehicle
    G01588486Courtesy of GENERAL MOTORS CORP.
  2. Press the molding down onto the retainers until seated.
  3. Reset the weatherstrip (2).
  4. Install the carpet retainer. Refer to CARPET RETAINER REPLACEMENT - FRONT  .
