Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seats. Refer to SEAT REPLACEMENT - FRONT BUCKET or to SEAT REPLACEMENT - SPLIT BENCH in Seats.
  2. Remove the center console, if equipped. Refer to CONSOLE REPLACEMENT - FRONT FLOOR (D06) in Instrument Panel, Gages, and Console.
  3. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.
  4. Remove the carpet retainers. Refer to CARPET RETAINER REPLACEMENT - FRONT  for the rear CARPET RETAINER REPLACEMENT - REAR  .
  5. Remove the both instrument panel insulators. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT and CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages, and Console.
  6. Remove the trim panel from the lower center pillar. Refer to TRIM PANEL REPLACEMENT - LOWER CENTER PILLAR  .
  7. Remove the quarter lower trim. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER  .
  8. Reposition the front and rear door weatherstrips and remove the carpet retainers (1) from the clips.

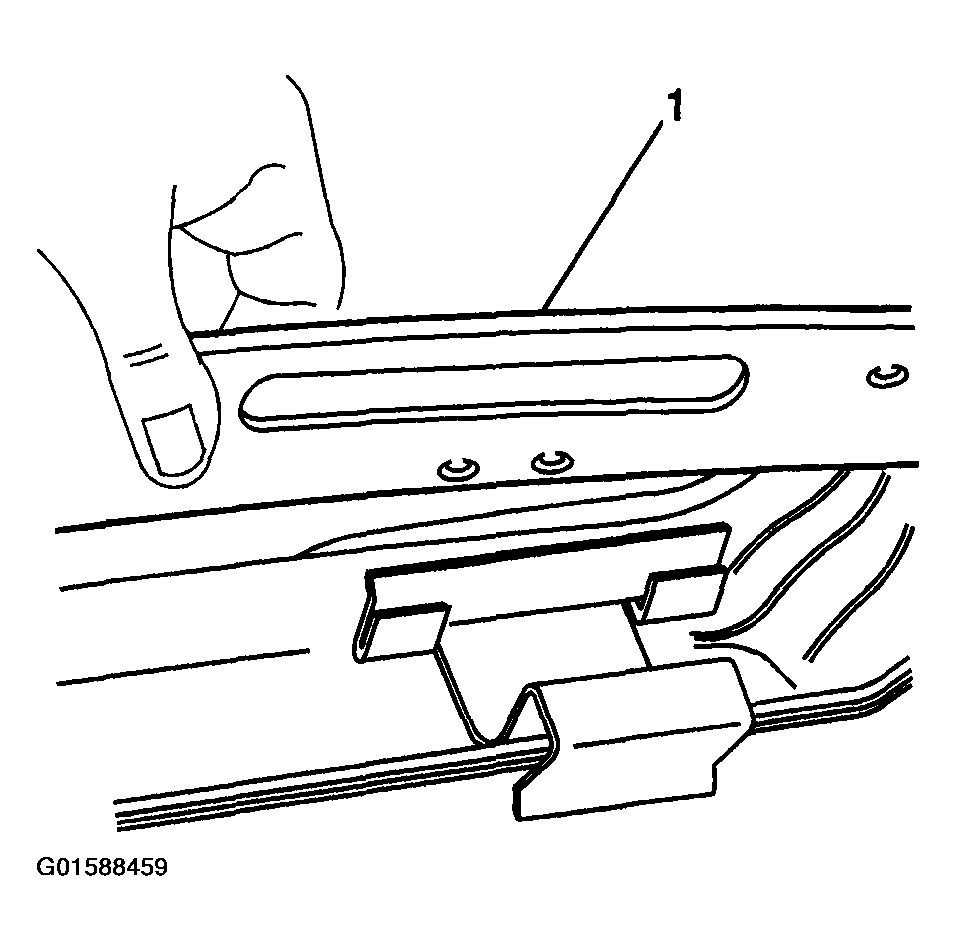

    9. Fig 1: Removing Carpet Retainers From Clips
    G01588459Courtesy of GENERAL MOTORS CORP.
  9. Remove the carpet from the vehicle.

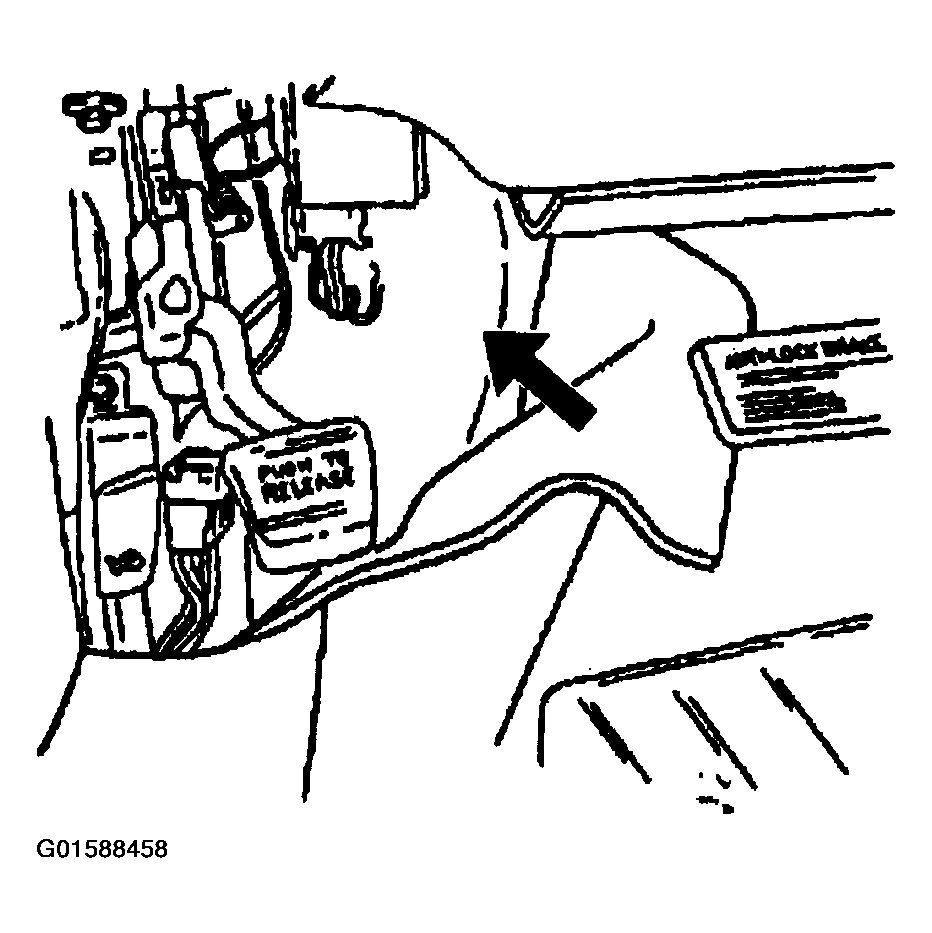

    10. Fig 2: Removing Carpet From Vehicle
    G01588458Courtesy of GENERAL MOTORS CORP.
