Power Window Schematics

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

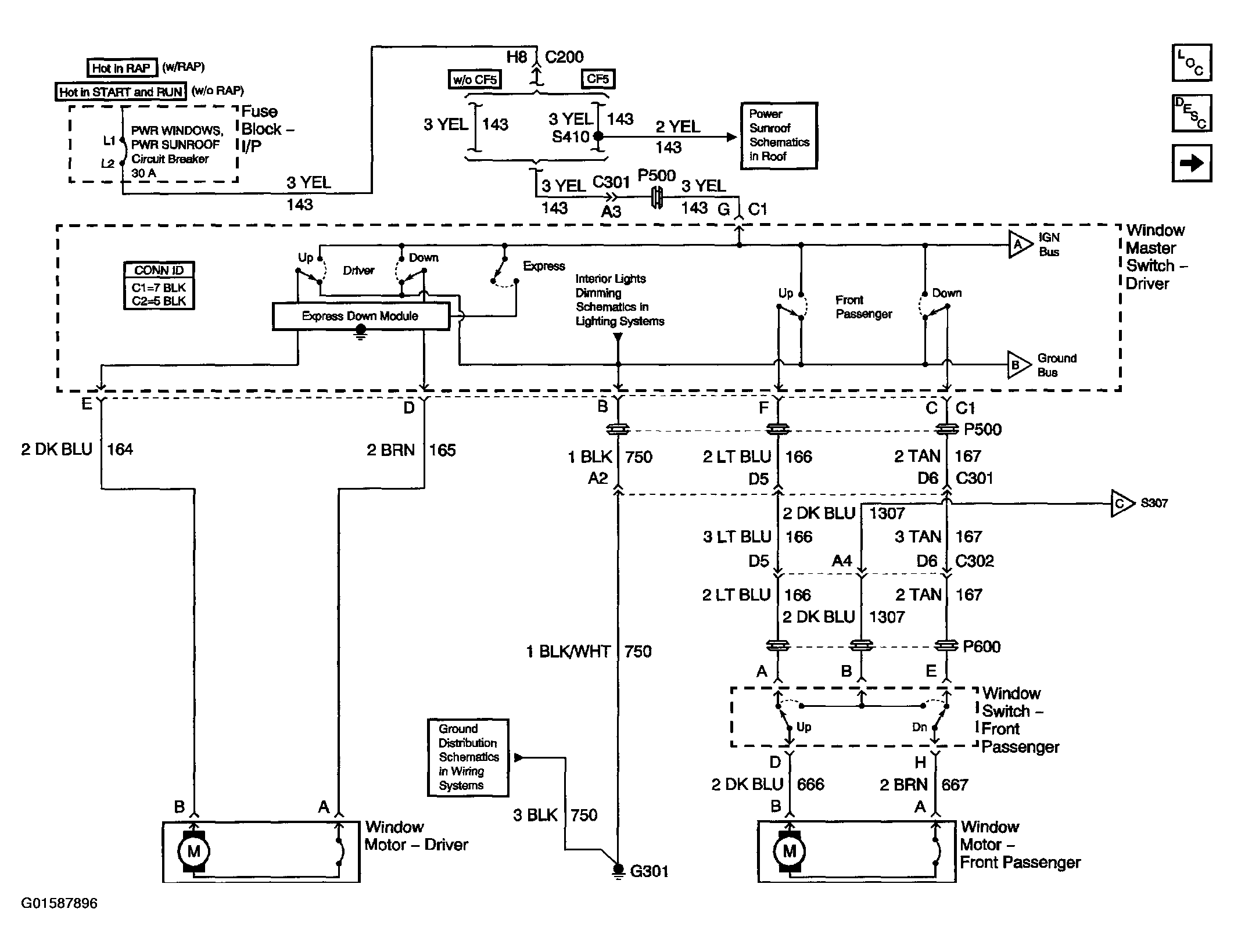

Fig 1: Front Window Diagram
G01587896Courtesy of GENERAL MOTORS CORP.

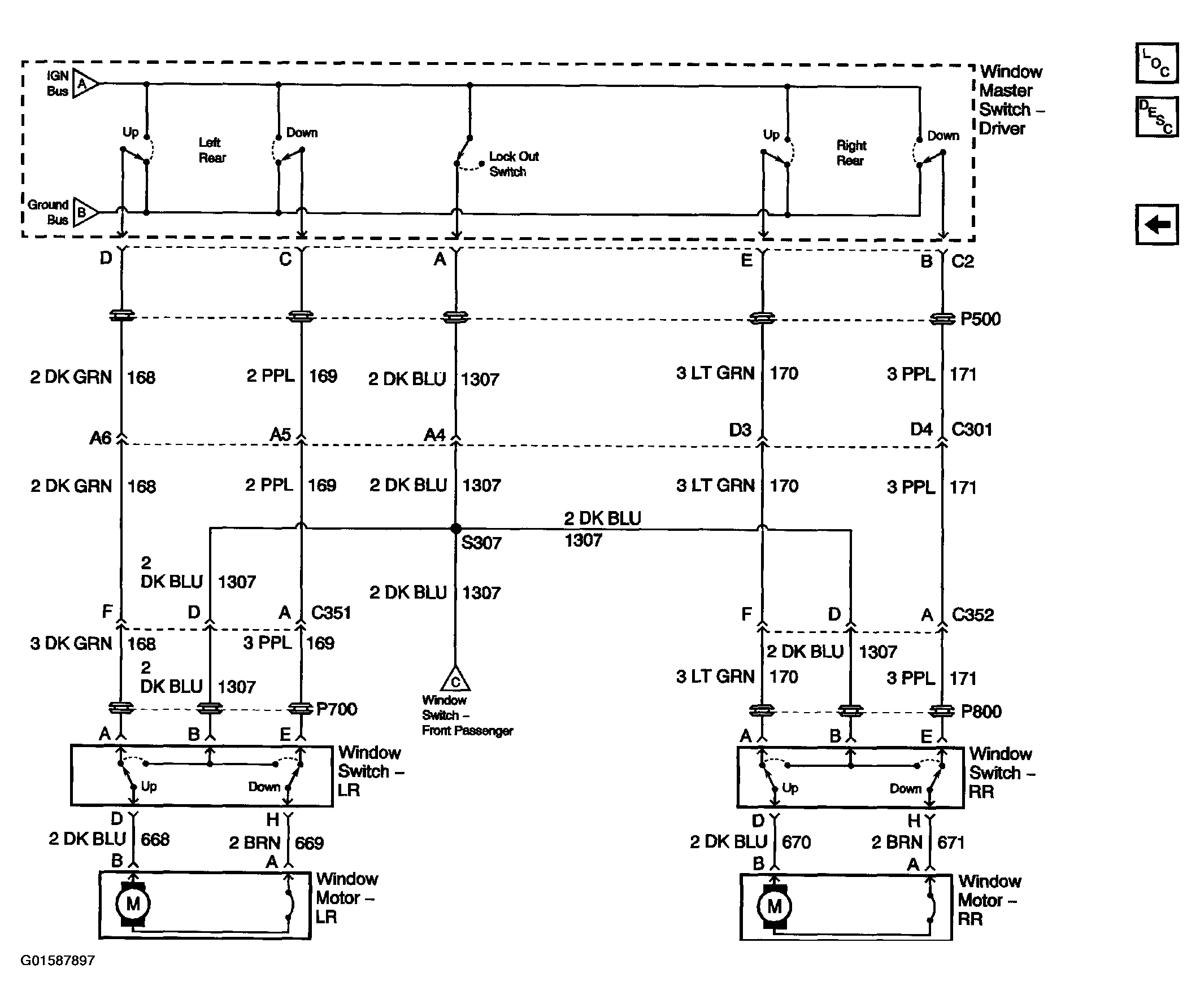

Fig 2: Rear Window Diagram
G01587897Courtesy of GENERAL MOTORS CORP.
