Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR  .
  2. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - REAR DOOR  .
  3. Remove the inner energy absorber. Refer to ENERGY ABSORBER PAD REPLACEMENT - REAR DOOR  .
  4. Remove the inner sealing strip. Refer to SEALING STRIP REPLACEMENT - REAR DOOR WINDOW BELT INNER  .
  5. Remove the outer belt sealing strip. Refer to SEALING STRIP REPLACEMENT - REAR DOOR WINDOW BELT OUTER  .
  6. Remove the rear door frame molding. Refer to GARNISH MOLDING REPLACEMENT - REAR DOOR FRAME  .
  7. Remove the window mounting bolts (1, 2).

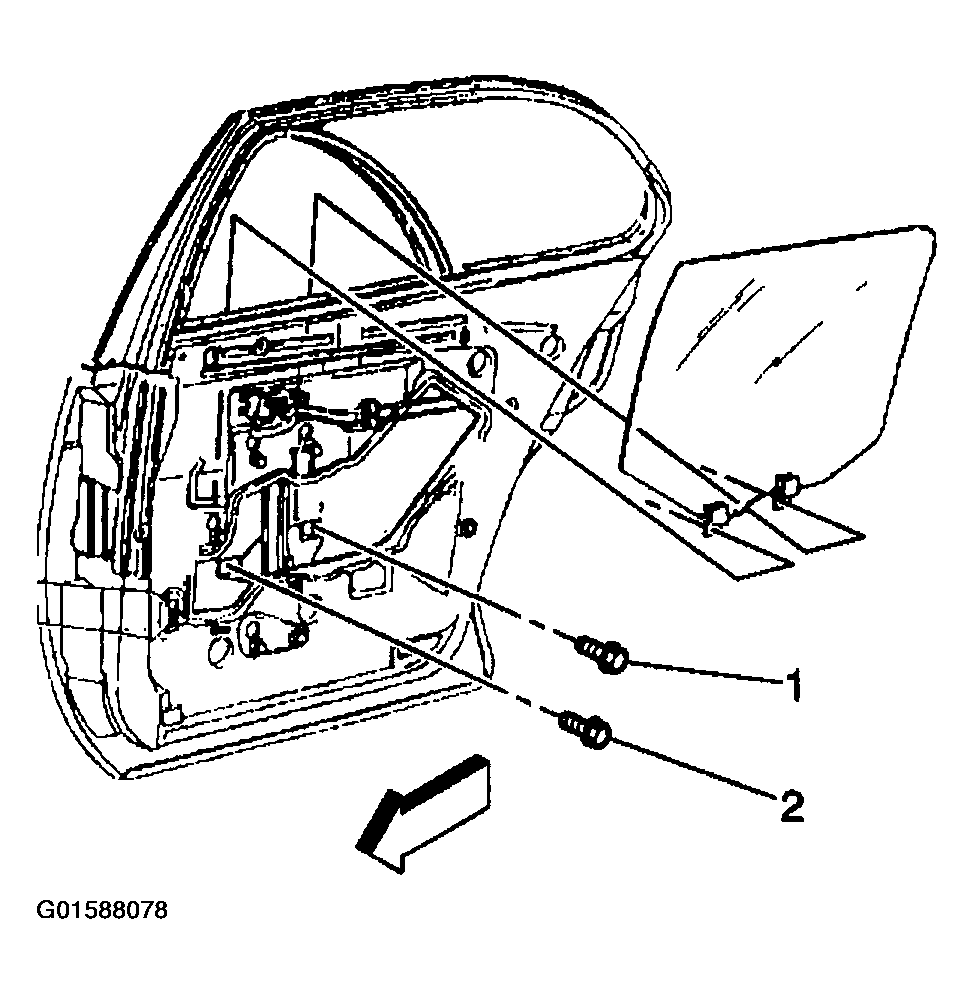

    8. Fig 1: Removing Rear Door Window
    G01588078Courtesy of GENERAL MOTORS CORP.
  8. Remove the window.
