Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - REAR DOOR  .
  2. Remove the rear door window. Refer to WINDOW REPLACEMENT - FRONT DOOR  .
  3. Remove the rear door window regulator rail lower mounting screws.
    IMPORTANT: The window regulator screws are seated into key slots in the inner door panel and is unnecessary to remove the screws completely from the window regulator.
  4. Loosen the rear door window regulator mounting screws.
  5. Lower the rear door window regulator motor into the rear door to gain access to the electrical connector.
  6. Disconnect the rear door window regulator motor electrical connector.
  7. Remove the rear door window regulator from the rear door.

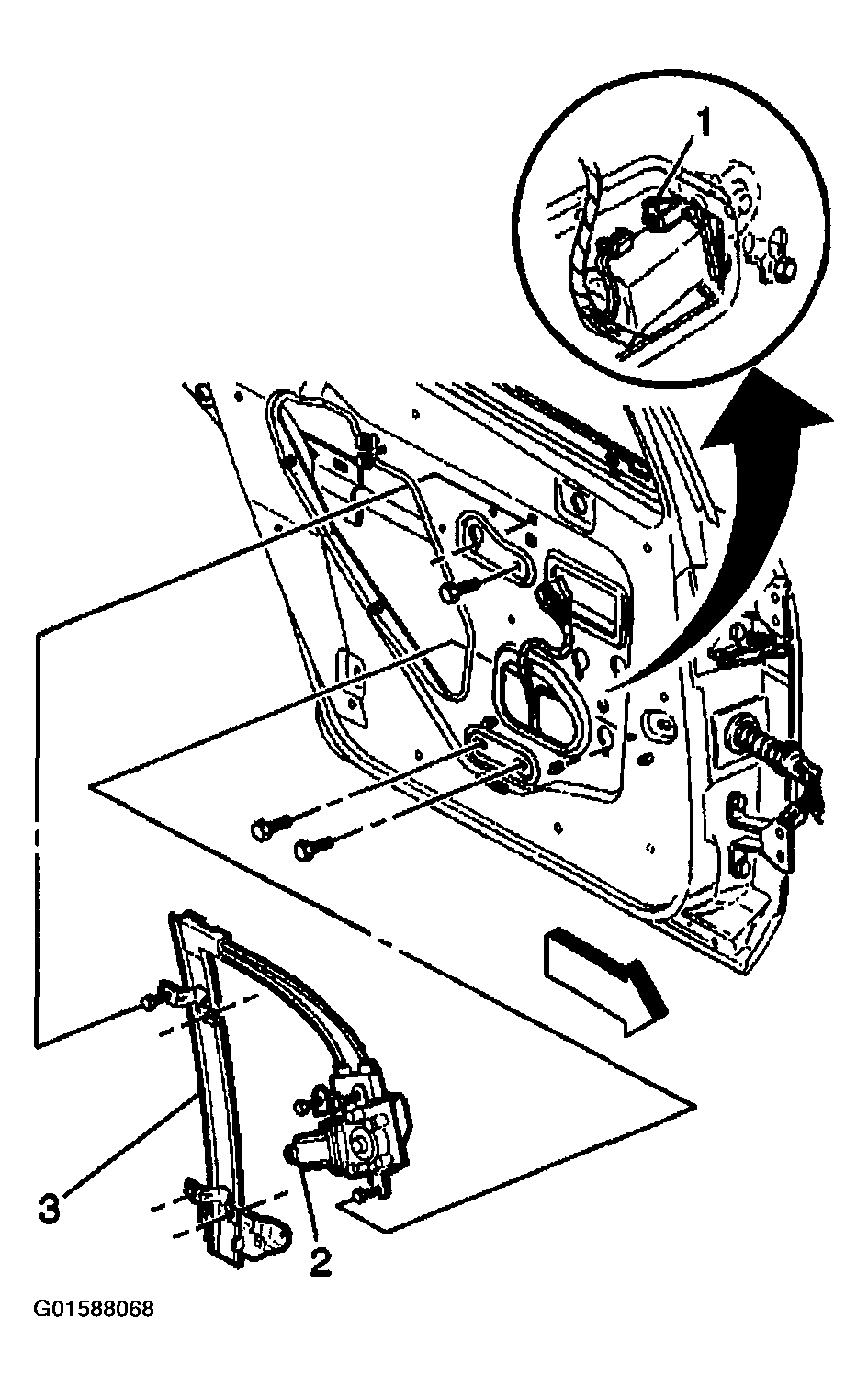

    8. Fig 1: Removing Rear Door Window Regulator From Rear Door
    G01588068Courtesy of GENERAL MOTORS CORP.
