Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  2. Remove the front door window. Refer to WINDOW REPLACEMENT - FRONT DOOR  .
  3. Remove the arm rest bracket. Refer to ARMREST REPLACEMENT  .
    IMPORTANT: The window regulator screws are seated into key slots in the inner door panel and is unnecessary to remove the screws completely from the window regulator.
  4. Loosen the front door window regulator mounting screws.
  5. Remove the front door window regulator rail left lower mounting screw.
  6. Lower the front door window regulator motor into the front door to gain access to the electrical connector.
  7. Disconnect the front door window regulator motor electrical connector.
  8. Remove the front door window regulator from the front door.

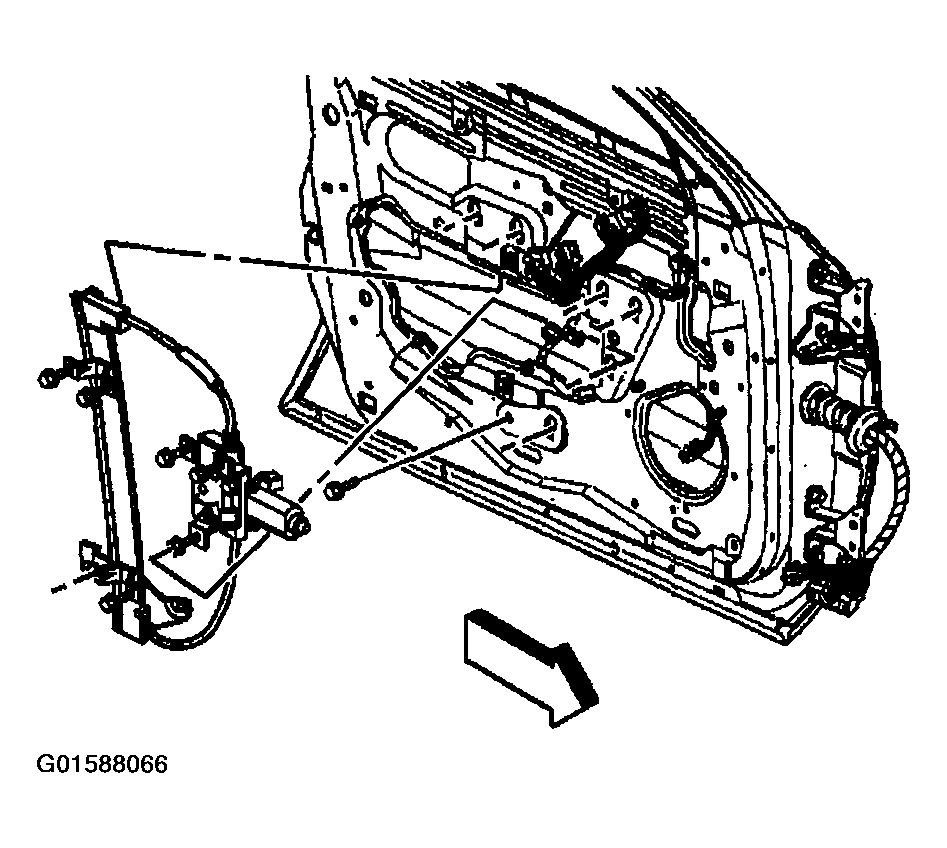

    9. Fig 1: Removing Front Door Window Regulator From Front Door
    G01588066Courtesy of GENERAL MOTORS CORP.
