Adjustment Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR  .
  2. Remove the rear door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - REAR DOOR  .
    • Condition 2.1: Using a flat-bladed tool, straighten the run channel lip by pulling it out to its correct position.
    • Condition 2.2: Use a flat-bladed tool to push the run channel rearward to seat it in the door frame.
      NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
    • Condition 2.3: Loosen the window to regulator bolts.

      Rotate the cam (5) on the window regulator plate so that the slot (6) is straight up and down. In this position, the back of the glass will tilt forward.

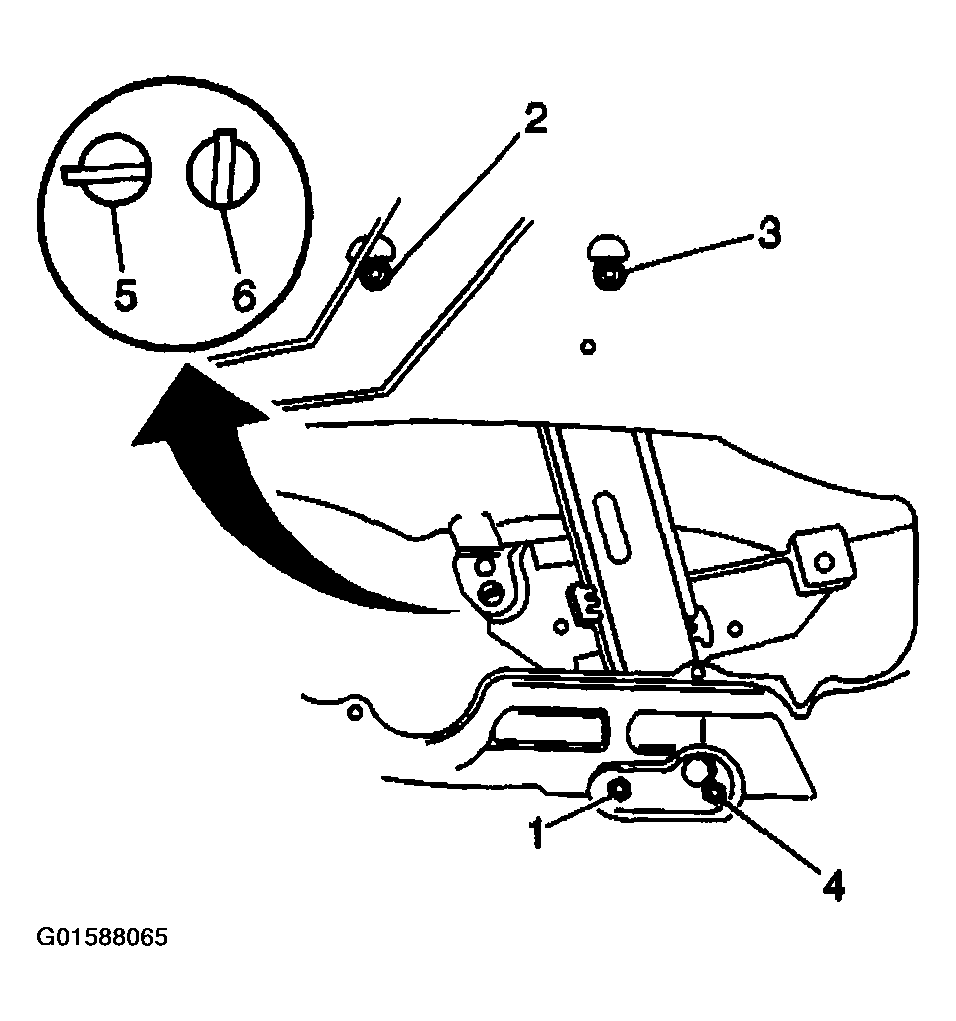

      Fig 1: Loosening Window Regulator Bolts
      G01588065Courtesy of GENERAL MOTORS CORP.

      Tighten

      Tighten the 2 window to regulator bolts to 10 N.m (89 lb in).

    • Condition 2.4: Loosen the window to regulator bolts.

      Loosen the 4 regulator bolts.

      Now, tighten the window regulator bolts according to the tightening sequence (1, 2, 3, 4).

      Tighten

      Tighten the 4 window regulator bolts to 10 N.m (89 lb in).

      Tighten the 2 window to regulator bolts.

      Tighten

      Tighten the 2 window to regulator bolts to 10 N.m (89 lb in).

  3. Connect the power window switch.
  4. Install the rear door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - REAR DOOR  .
  5. Install the rear door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR  .
