Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear door.
  2. Remove the lower half of the rear door weatherstrip and retainers using J 38778.
  3. Remove the upper half of the rear door weatherstrip pulling the weatherstrip from the track.
  4. Remove the rear door weatherstrip from the rear door.

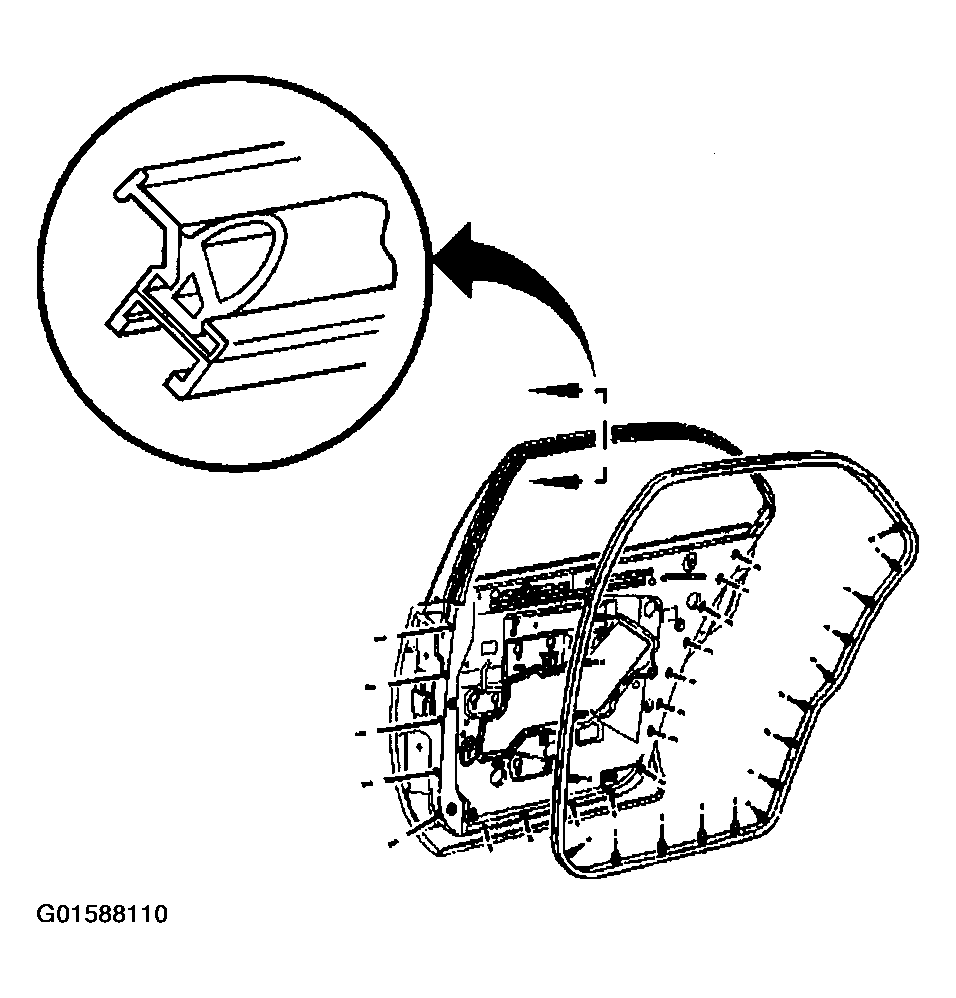

    5. Fig 1: Removing Rear Door Weatherstrip
    G01588110Courtesy of GENERAL MOTORS CORP.
