Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the rear door window in the full down position.
  2. Remove the rear door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - REAR DOOR  .
  3. Remove the rear door inner belt sealing strip. Refer to SEALING STRIP REPLACEMENT - REAR DOOR WINDOW BELT INNER  .
  4. Remove the rear door stationary window molding. Refer to WINDOW REPLACEMENT - REAR DOOR STATIONARY  .
  5. Remove the rear door window weatherstrip from the rear door.

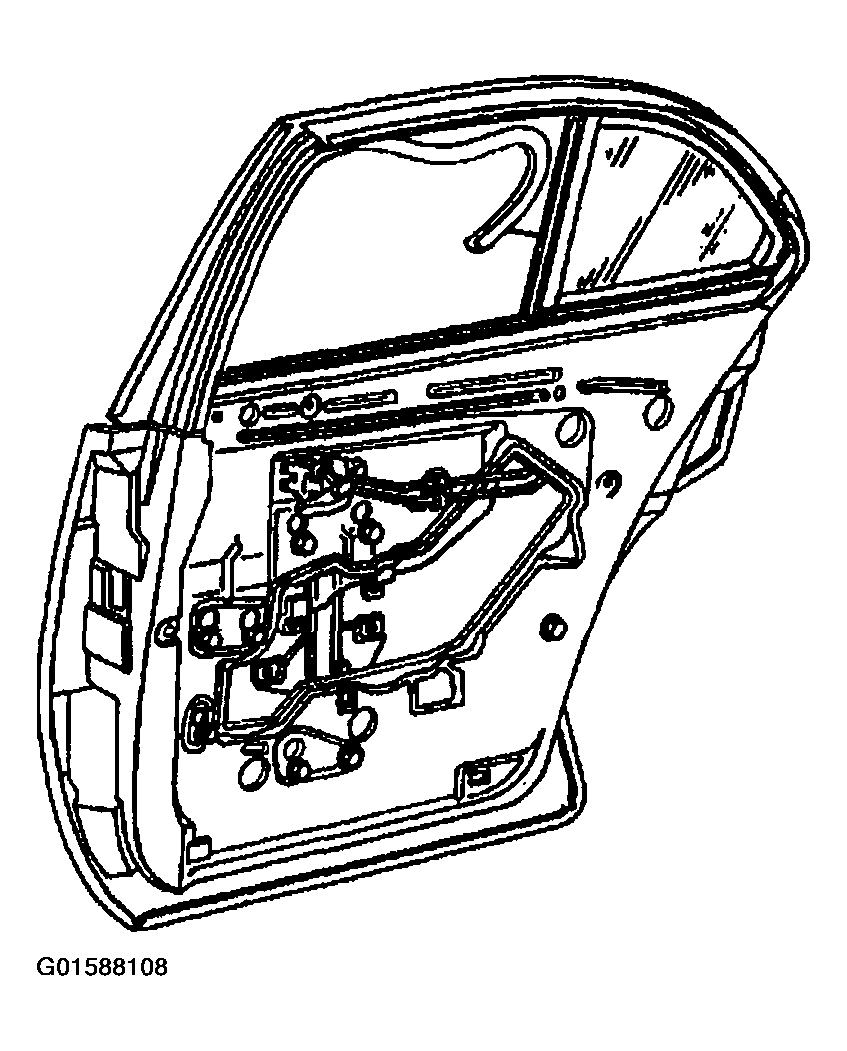

    6. Fig 1: Removing Rear Door Window Weatherstrip
    G01588108Courtesy of GENERAL MOTORS CORP.
