Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear carpet retainers. Refer to CARPET RETAINER REPLACEMENT - REAR in Interior Trim.
  2. Pull the lower edges of the weatherstrip and retainers away from the door.
  3. Pull the upper edges of the weatherstrip from the door.
  4. Remove the weatherstrip from the door.

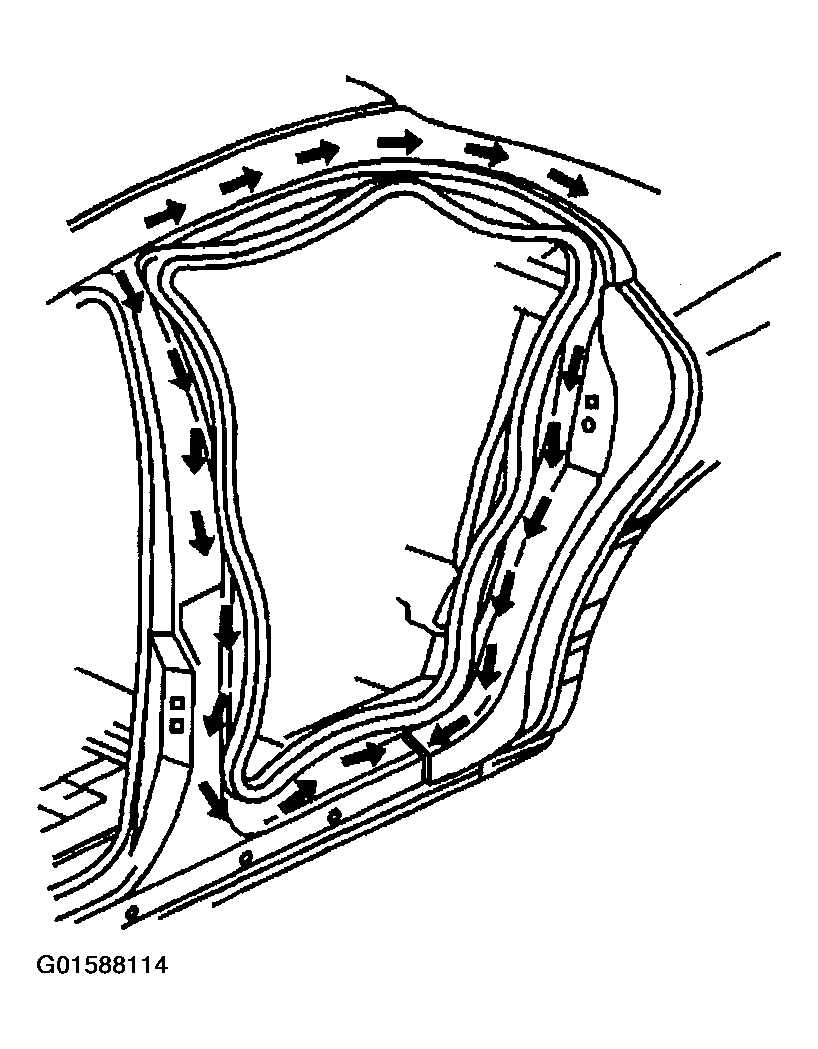

    5. Fig 1: Removing Rear Door Opening Weatherstrip
    G01588114Courtesy of GENERAL MOTORS CORP.
