Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the front door.
  2. Using the J 38778, remove the lower half of the front door weatherstrip and retainers from the front door.
  3. Pull the upper half of the front door weatherstrip from the front door weatherstrip track.
  4. Remove the front door weatherstrip from the front door.

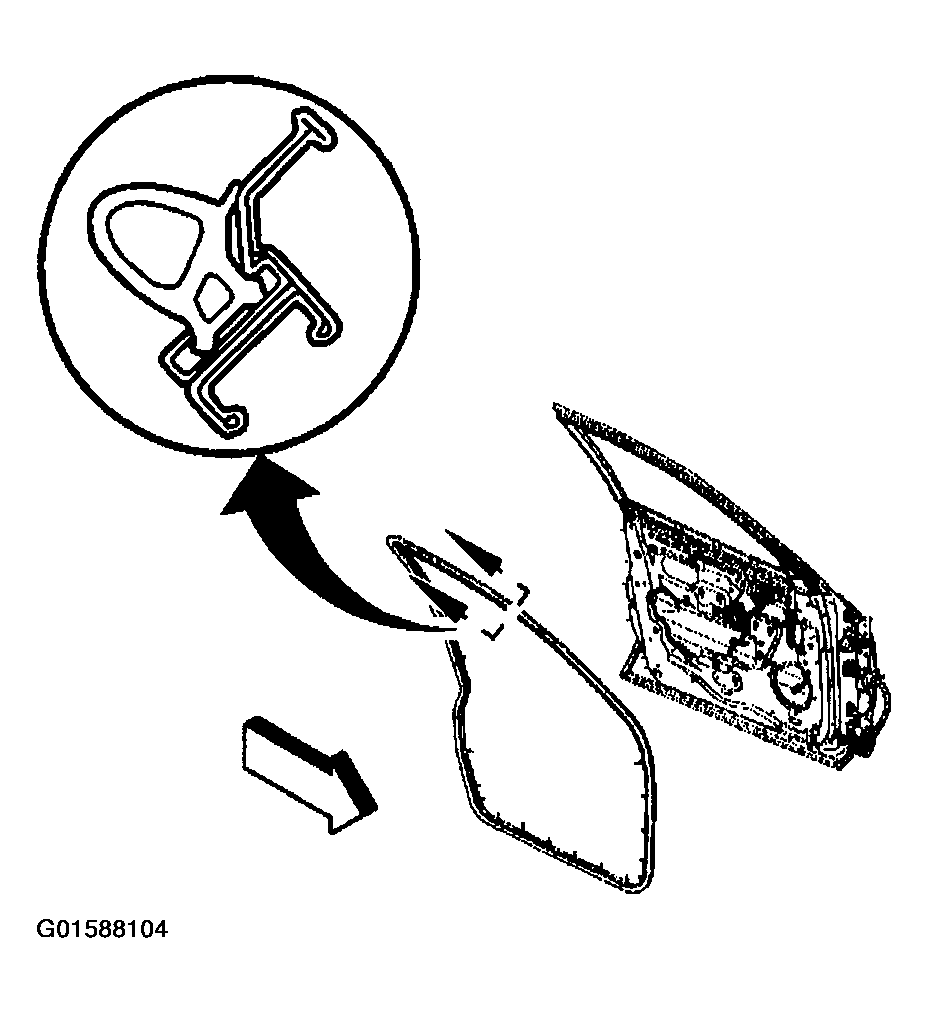

    5. Fig 1: Removing Front Door Weatherstrip
    G01588104Courtesy of GENERAL MOTORS CORP.
