Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the outside mirror. Refer to MIRROR REPLACEMENT - REMOTE  or MIRROR REPLACEMENT - POWER  .
  2. Remove the front door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  3. Remove the front door inner sealing strip. Refer to SEALING STRIP REPLACEMENT - FRONT DOOR WINDOW BELT INNER  .
  4. Remove the front door outer belt sealing strip. Refer to SEALING STRIP REPLACEMENT - FRONT DOOR WINDOW BELT OUTER - FRONT  .
  5. Remove the front door window. Refer to WINDOW REPLACEMENT - FRONT DOOR  .
  6. Remove the front door window weatherstrip from the front door.

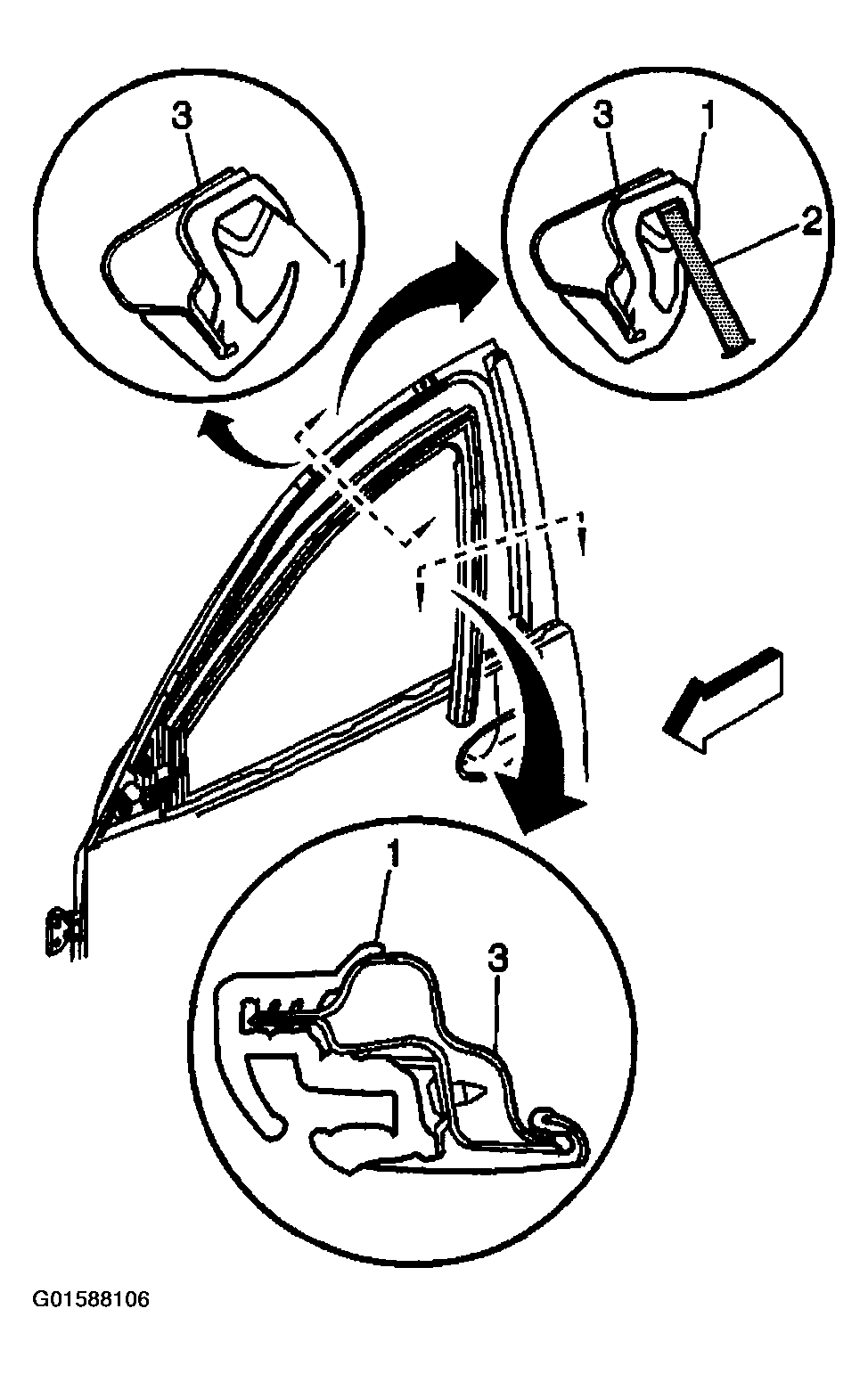

    7. Fig 1: Removing Front Door Window Weatherstrip
    G01588106Courtesy of GENERAL MOTORS CORP.
