Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR  .
  2. remove the rear door water deflector from the rear door inner panel.

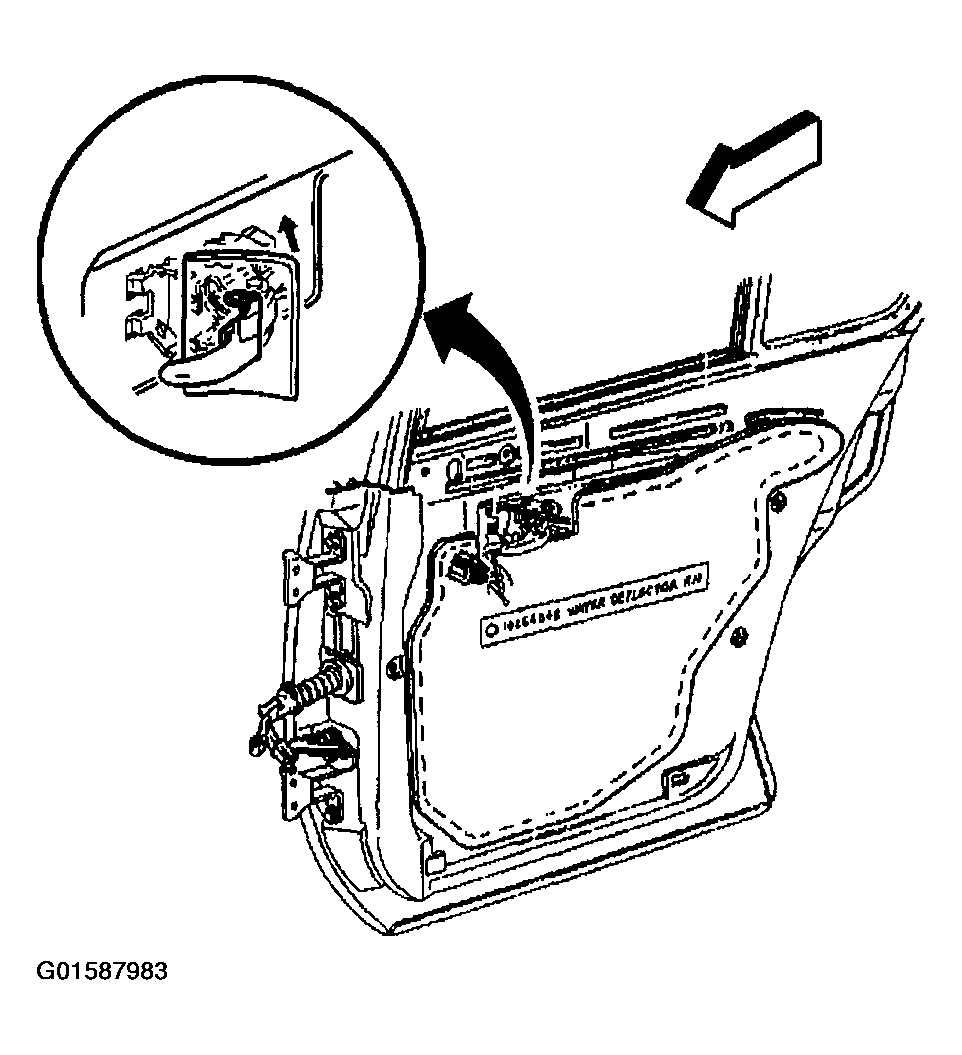

    3. Fig 1: Removing Rear Door Water Deflector
    G01587983Courtesy of GENERAL MOTORS CORP.
