Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Remove the front door radio speaker. Refer to SPEAKER REPLACEMENT - FRONT DOOR .
  3. Disconnect the power mirror electrical connector.
  4. Remove the front door water deflector from the front door.

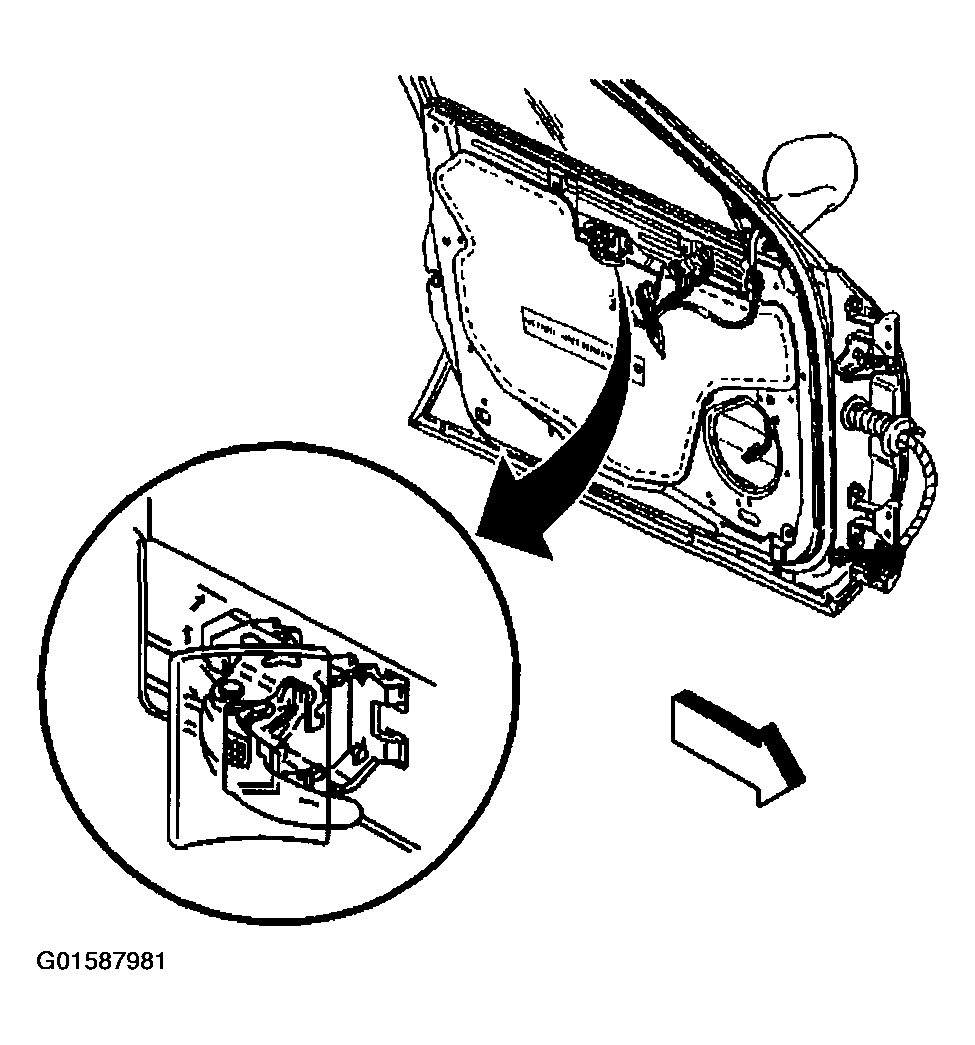

    5. Fig 1: Removing Front Door Water Deflector
    G01587981Courtesy of GENERAL MOTORS CORP.
