Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power window switch (3), if equipped. Refer to POWER WINDOW SWITCH REPLACEMENT - REAR DOOR  .
  2. Remove the arm rest pull cup cover (1).

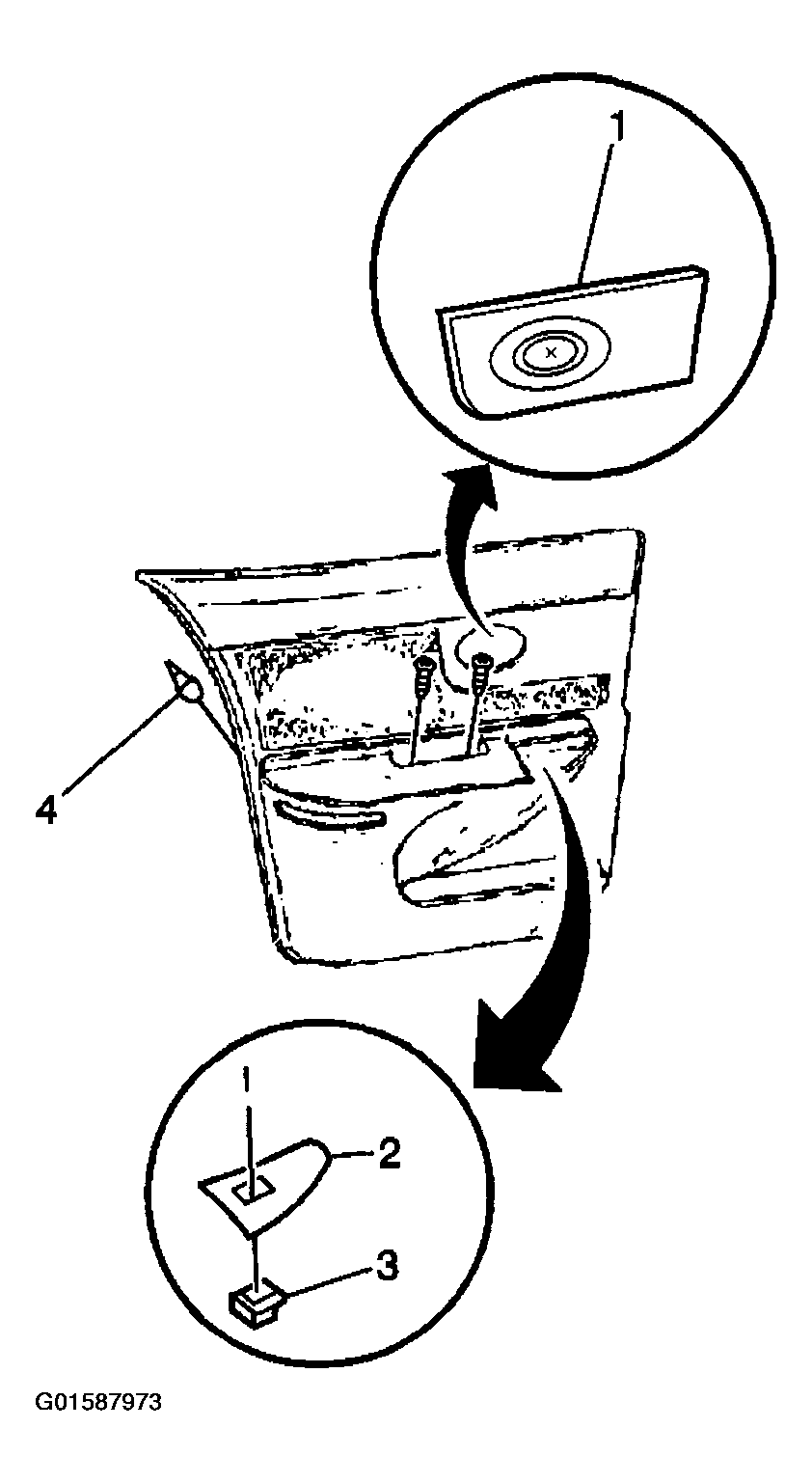

    3. Fig 1: Removing Side Rear Door Trim Panel
    G01587973Courtesy of GENERAL MOTORS CORP.
  3. Remove the armrest pull cup screws.
  4. Starting at the door bottom, use the J 38778 to release the door trim panel retainers.
  5. Lift the trim panel up to release the top edge and remove it from the door.
