Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the rear door window.
  2. Remove the rear door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR  .
  3. Lift the rear door window inner belt sealing strip off of the weld flange.

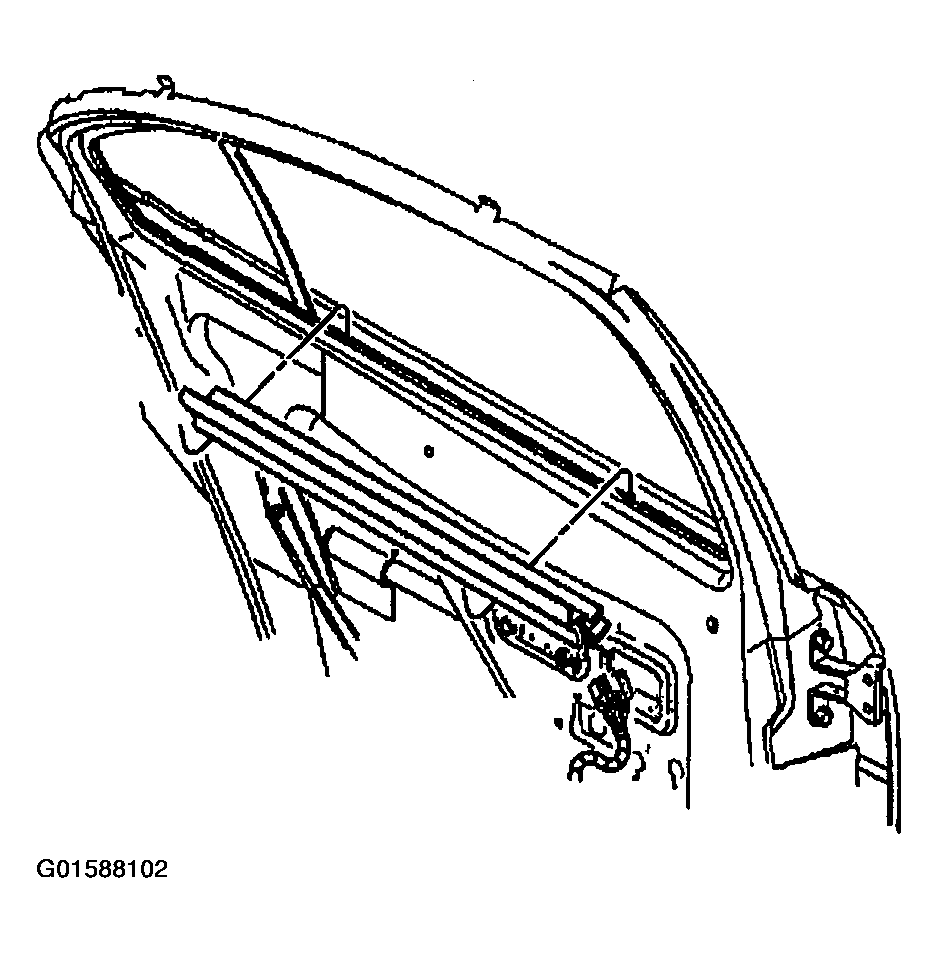

    4. Fig 1: Removing Rear Door Window Belt Inner Sealing Strip
    G01588102Courtesy of GENERAL MOTORS CORP.
