Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the front door window.
  2. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  3. Lift the front door window inner belt sealing strip off of the weld flange.

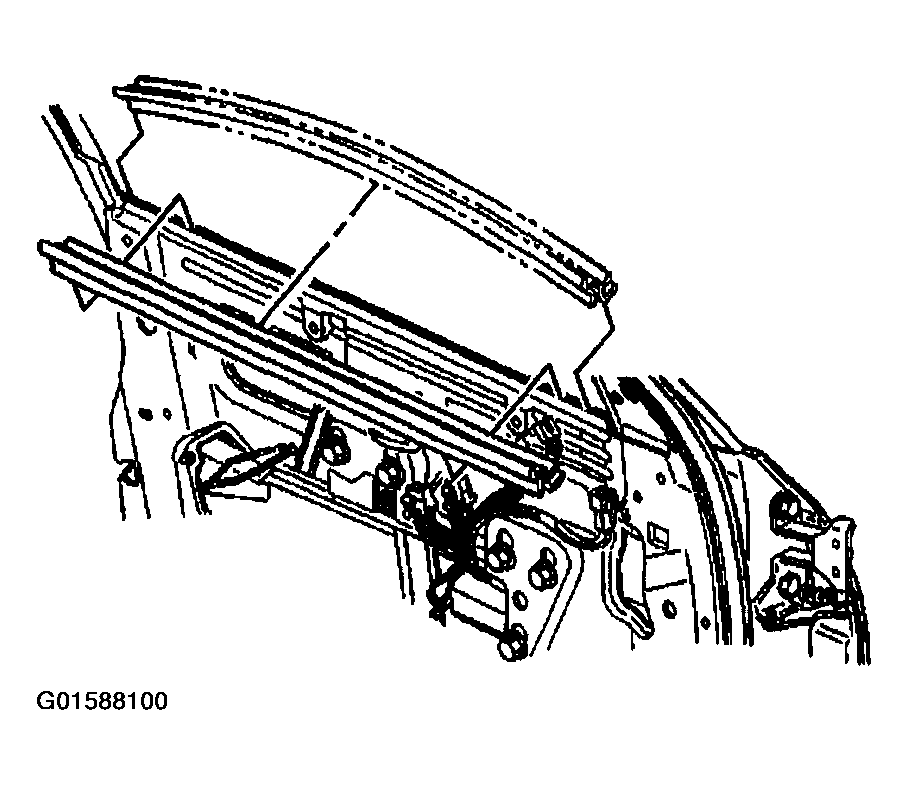

    4. Fig 1: Removing Front Door Window Belt Inner Sealing Strip
    G01588100Courtesy of GENERAL MOTORS CORP.
