Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the conduit from the center pillar.
  2. Remove the door wiring harness electrical connector.
  3. Remove the conduit from the door.

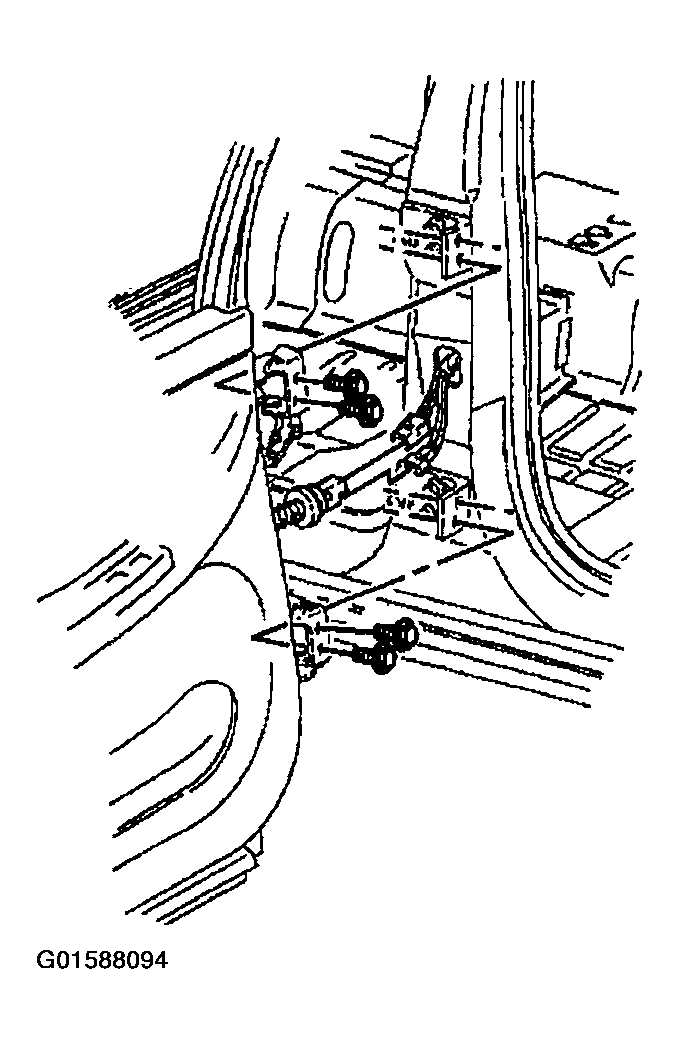

  4. Fig 1: Removing Rear Door Rubber Conduit
    G01588094Courtesy of GENERAL MOTORS CORP.
