Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door rubber conduit (1) from where it attaches at the A-pillar.

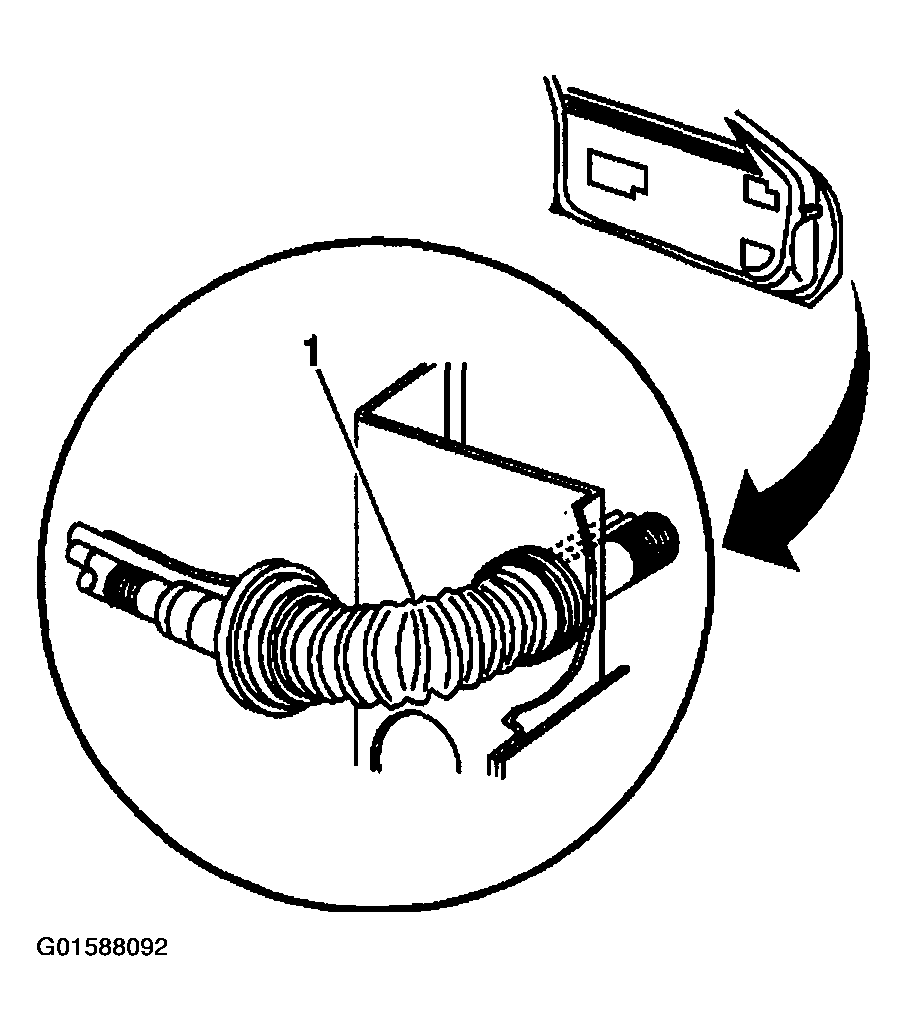

    2. Fig 1: Removing Front Door Rubber Conduit
    G01588092Courtesy of GENERAL MOTORS CORP.
  2. Carefully pull the wire harness out from the A-pillar to expose the harness connector.
  3. Disconnect the door wiring harness electrical connector.
  4. Remove the conduit from the door and remove it from the electrical harness.
