Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door window belt outside sealing strip. Refer to SEALING STRIP REPLACEMENT - FRONT DOOR WINDOW BELT OUTER - FRONT  .
  2. Using the J 38778, remove the front door window reveal molding push-in retainer.
  3. Using a small flat-bladed tool, release the retaining clips while pulling front door window reveal molding from the front door.
  4. Remove the front door window reveal molding from the front door.

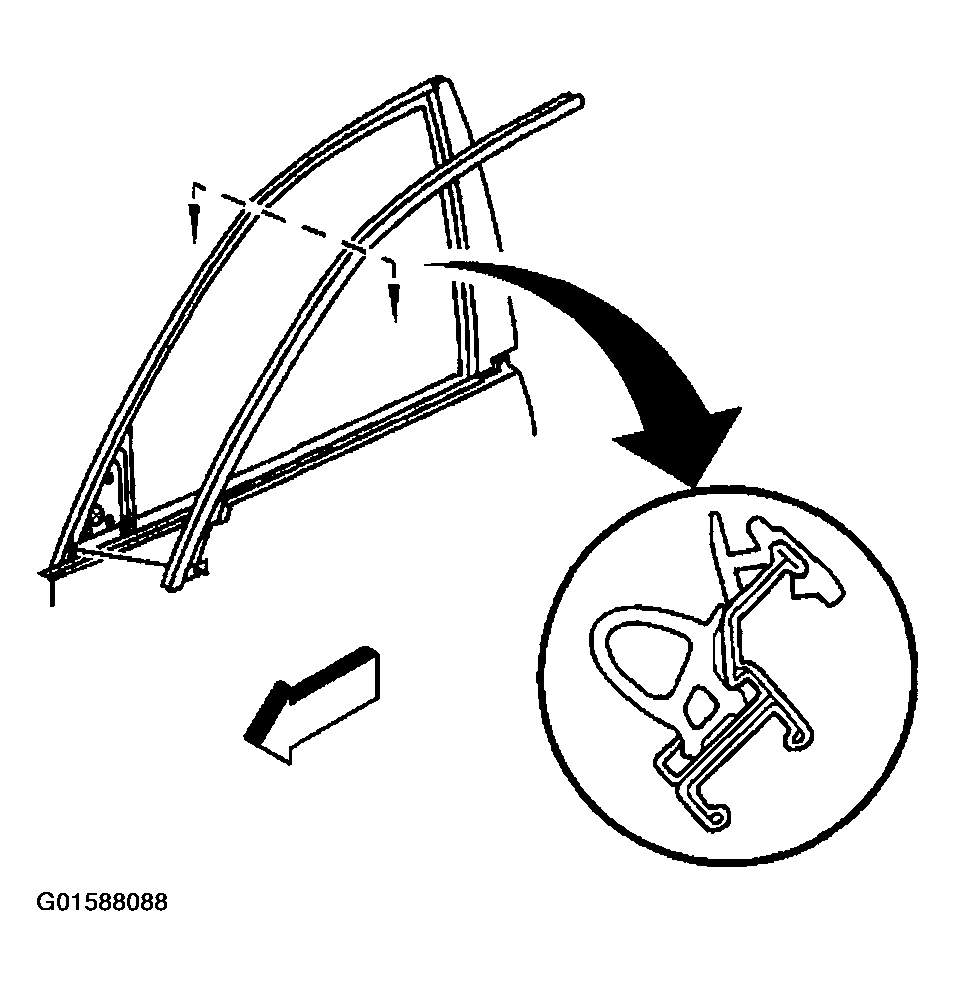

    5. Fig 1: Removing Front Door Window Reveal Molding
    G01588088Courtesy of GENERAL MOTORS CORP.
