Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Do not attempt repairs in order to correct lock discrepancies. Replace the lock.

Remove the outside handle. Refer to DOOR HANDLE REPLACEMENT - FRONT OUTSIDE .
Remove the lock cylinder retainer clip.
Remove the lock from the handle.

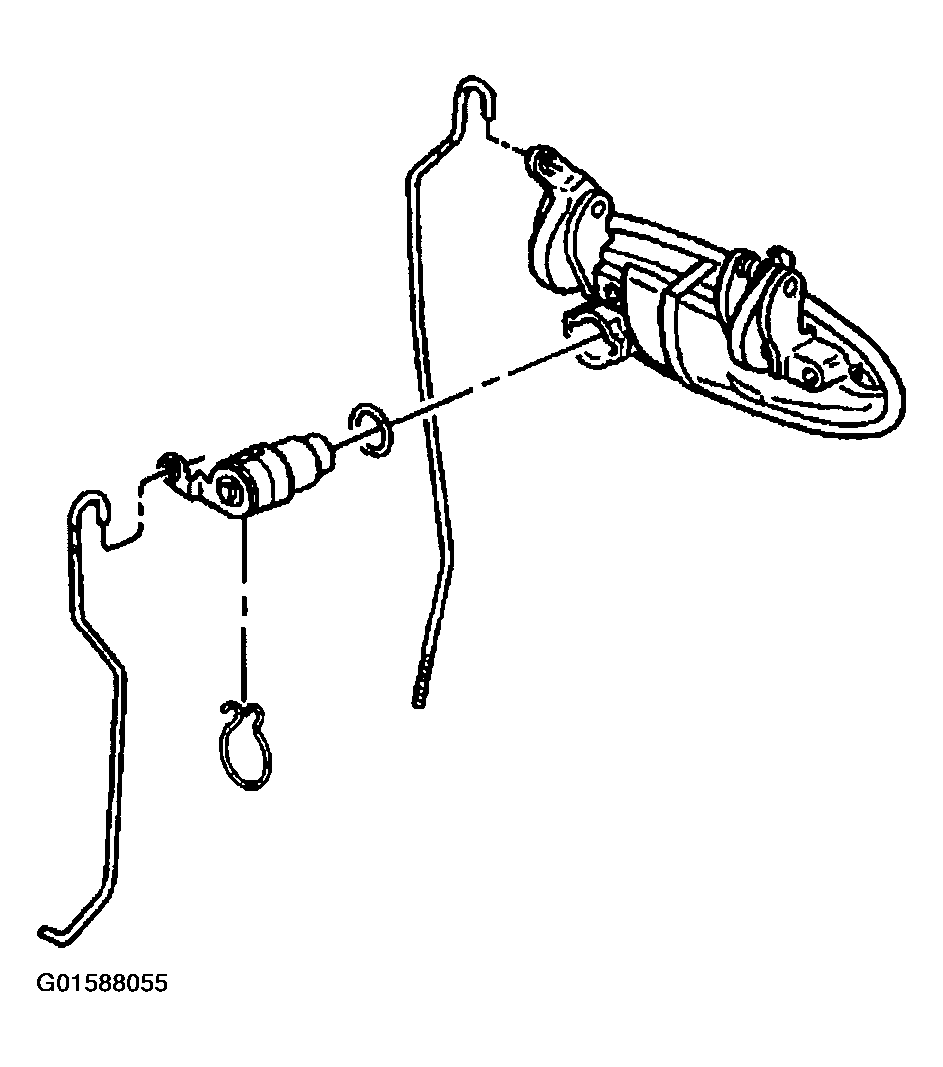

Fig 1: Removing Door Lock Cylinder

Courtesy of GENERAL MOTORS CORP.
