Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door lock. Refer to LOCK REPLACEMENT - FRONT DOOR  .
  2. Remove the front door lock actuator screws.
  3. Remove the front door lock actuator from the front door lock.

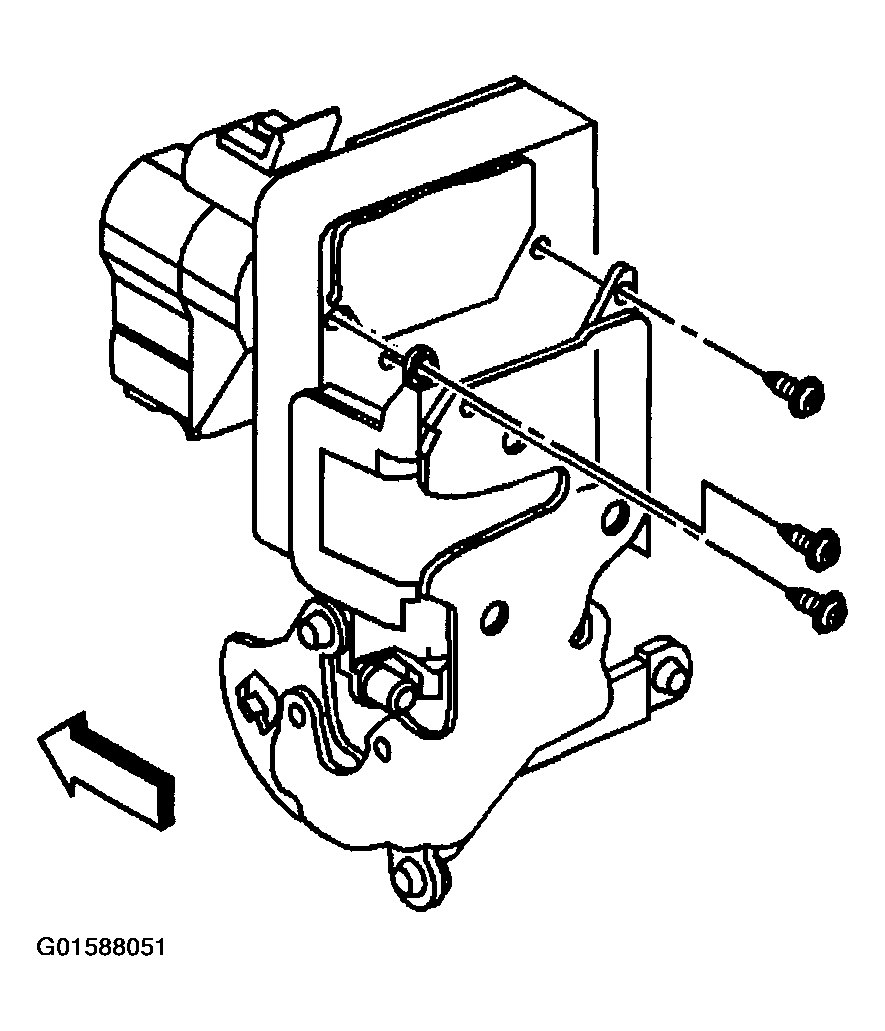

    4. Fig 1: Removing Front Door Lock Actuator
    G01588051Courtesy of GENERAL MOTORS CORP.
