Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear door.
  2. Using J 36604, remove the rear door hinge spring from the rear door hinge.
  3. Remove the door hinge spring from the vehicle.

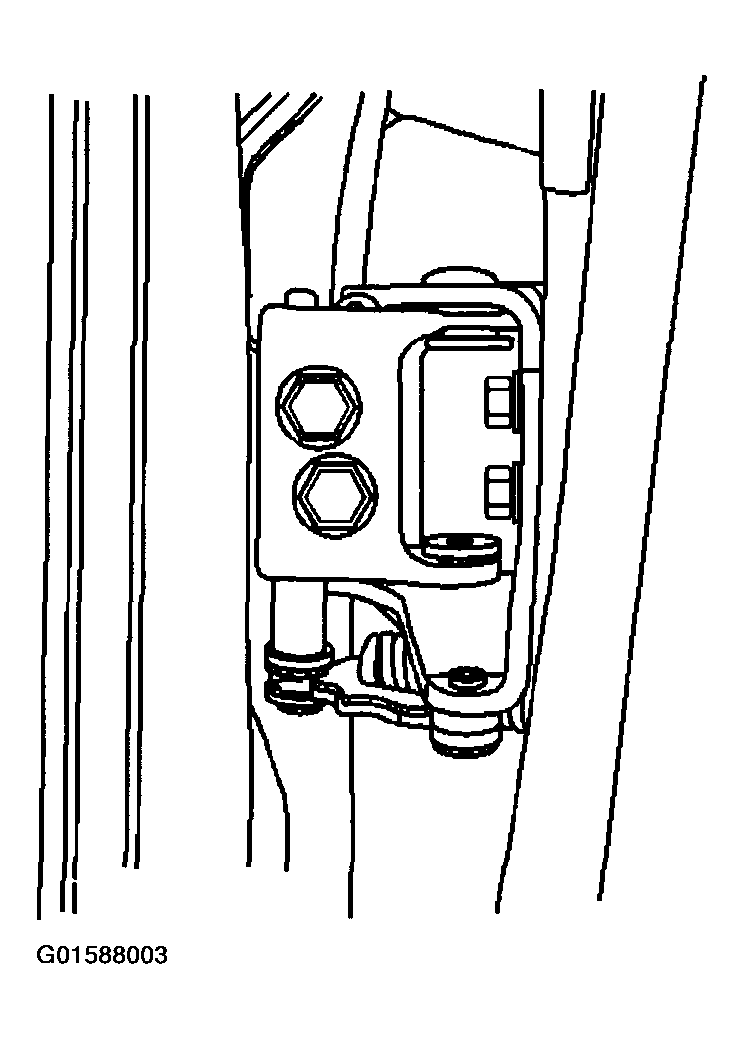

  4. Fig 1: Removing Rear Door Hinge Spring
    G01588003Courtesy of GENERAL MOTORS CORP.
