Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: The bezel on the front inside door handle has an electrical connector for the power door lock system.
  1. Remove the inside door handle bezel screw.
  2. Using a small, flat-bladed tool, remove the inside door handle bezel from the door trim panel.
  3. Remove the inside door lock electrical connector.
  4. Remove the inside door handle bezel from the vehicle.

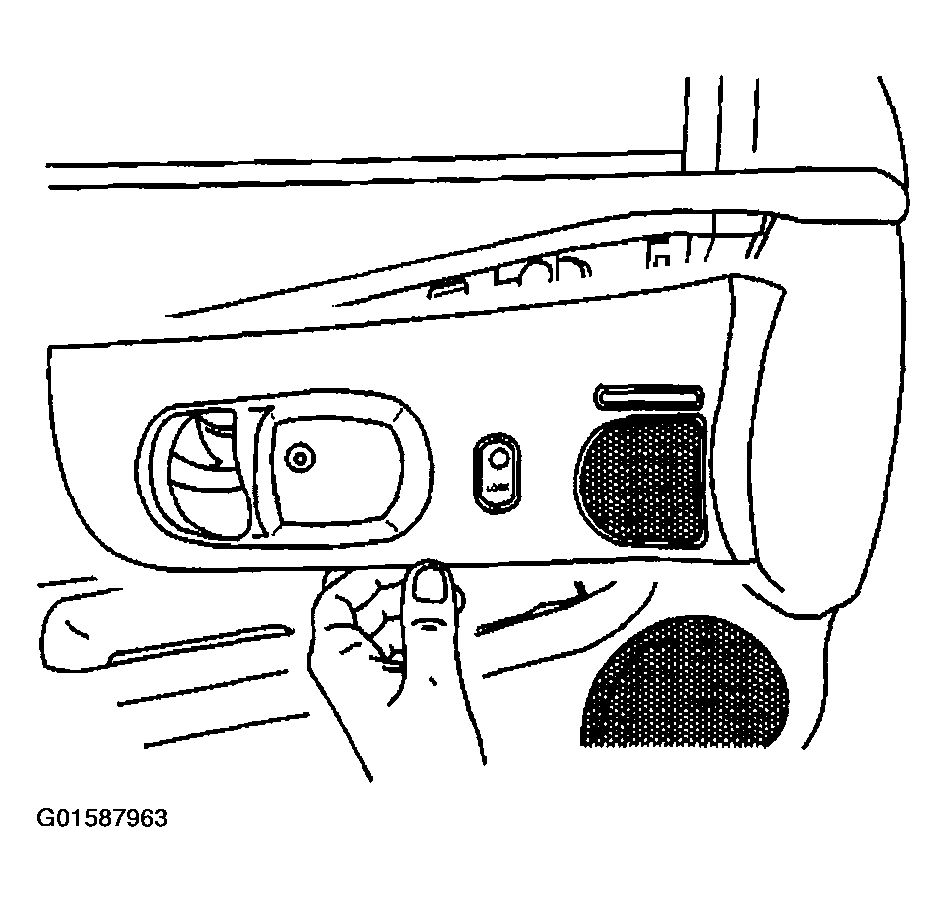

    5. Fig 1: Removing Inside Door Handle Bezel From Vehicle
    G01587963Courtesy of GENERAL MOTORS CORP.
