Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door reveal molding. Refer to REVEAL MOLDING REPLACEMENT - REAR DOOR WINDOW  .
  2. Slide the rear door garnish molding upwards.
  3. Remove the rear door garnish molding from the rear door.

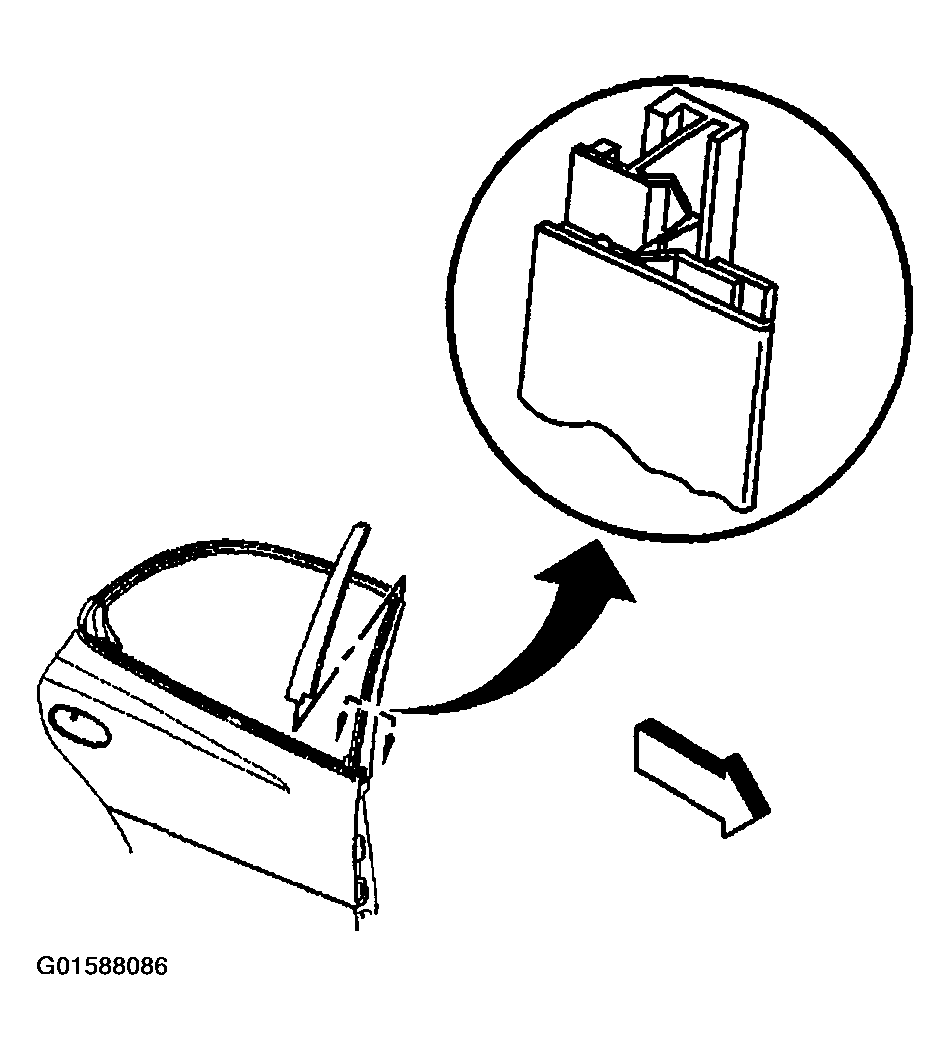

    4. Fig 1: Removing Rear Door Garnish Molding
    G01588086Courtesy of GENERAL MOTORS CORP.
