Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door reveal molding. Refer to GARNISH MOLDING REPLACEMENT - FRONT DOOR FRAME  .
  2. Slide the front door garnish molding upwards.
  3. Remove the front door garnish molding from the front door.

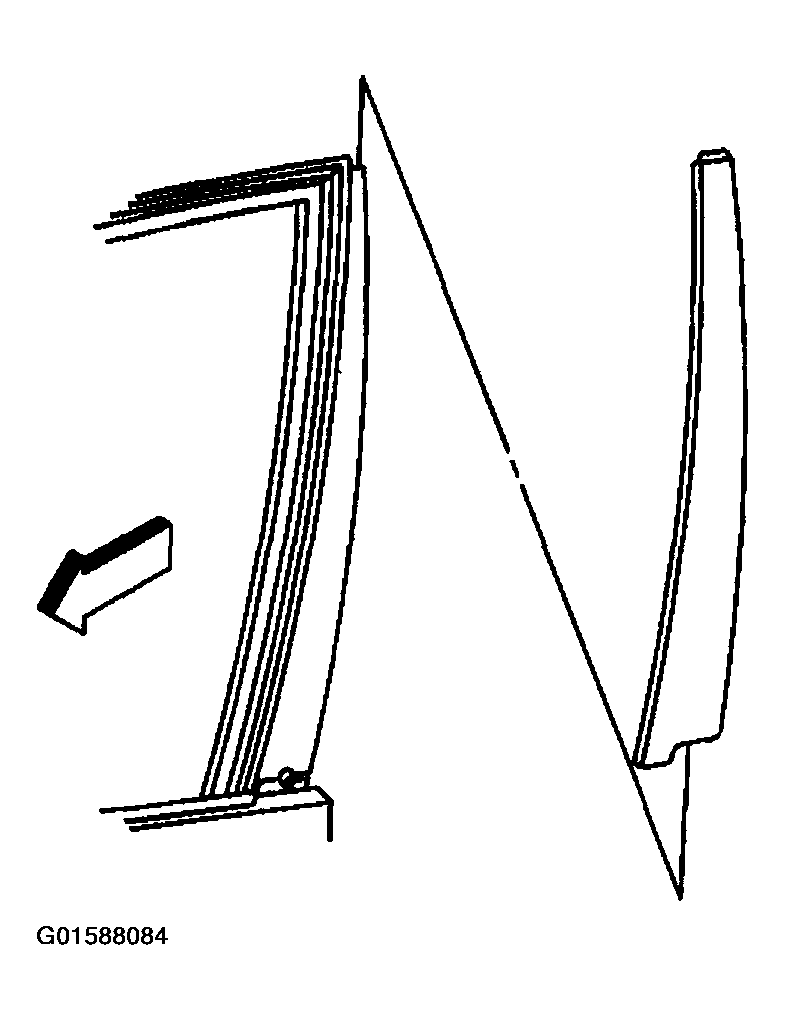

    4. Fig 1: Remove Front Door Garnish Molding
    G01588084Courtesy of GENERAL MOTORS CORP.
