Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: This vehicle has energy-absorbing foam blocks for side impact protection. To help avoid personal injury in a collision, foam blocks that are damaged, or removed during repairs must be replaced. Failure to replace foam blocks that are removed can violate federal law.
  1. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - REAR DOOR  .
  2. Remove the window regulator. Refer to WINDOW REGULATOR REPLACEMENT - REAR DOOR  .
  3. Remove energy absorber clip.
  4. Grasp the energy absorber with both hands and remove from the front door.

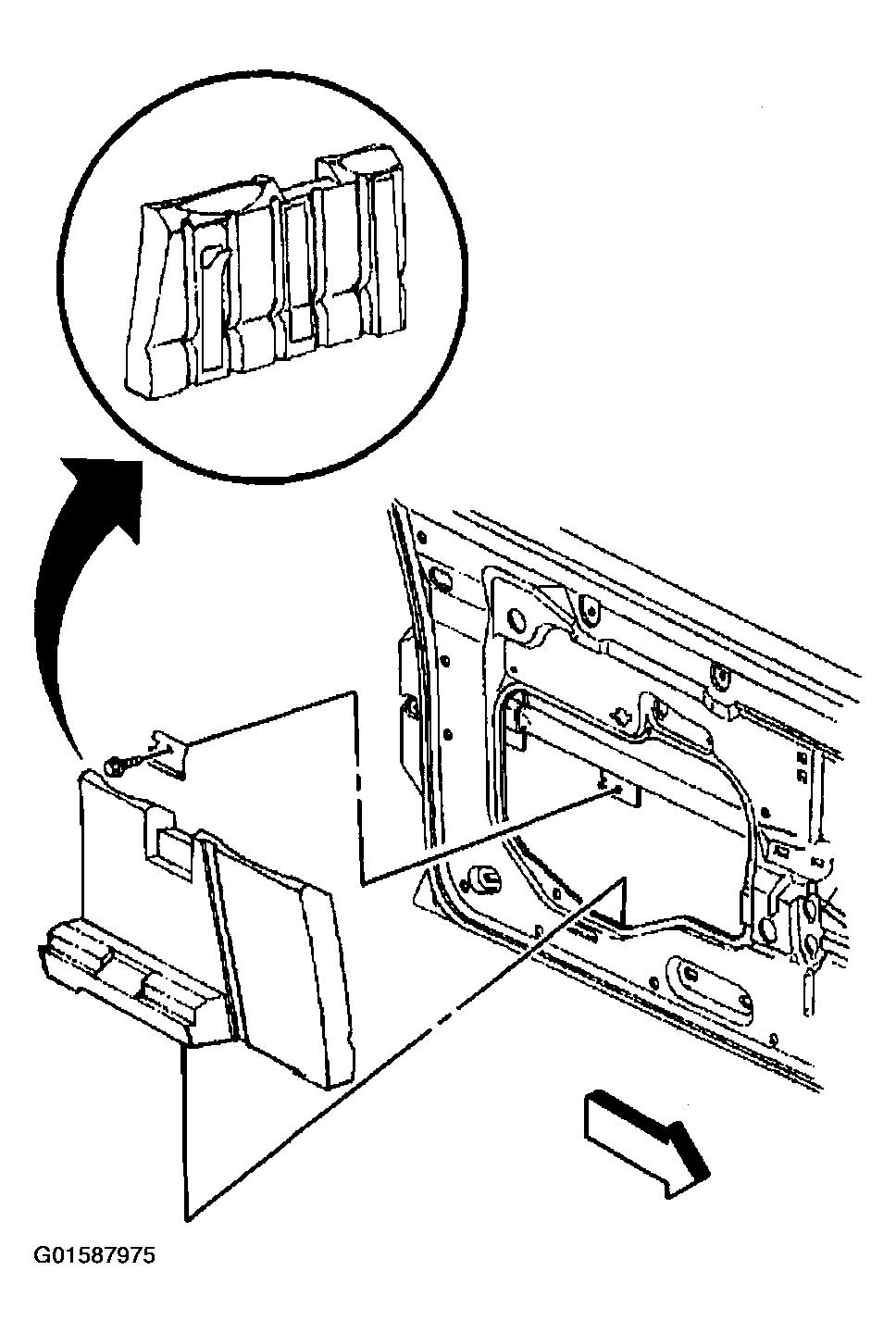

    5. Fig 1: Removing Rear Door Energy Absorber Pad
    G01587975Courtesy of GENERAL MOTORS CORP.
