Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Remove the lock. Refer to LOCK REPLACEMENT - REAR DOOR .

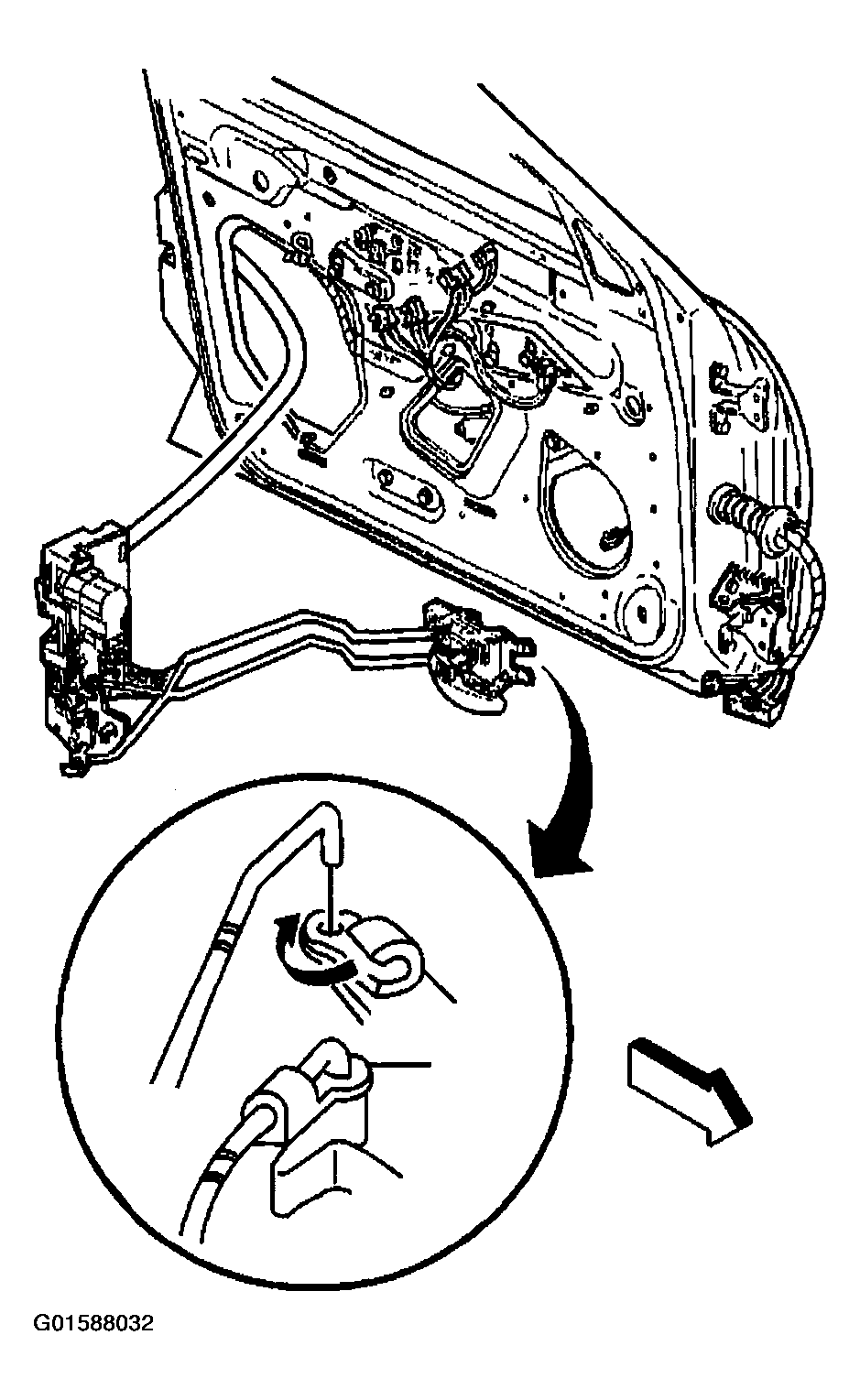

Fig 1: Removing Lock

Courtesy of GENERAL MOTORS CORP.

Remove the inside handle rod from the lock.

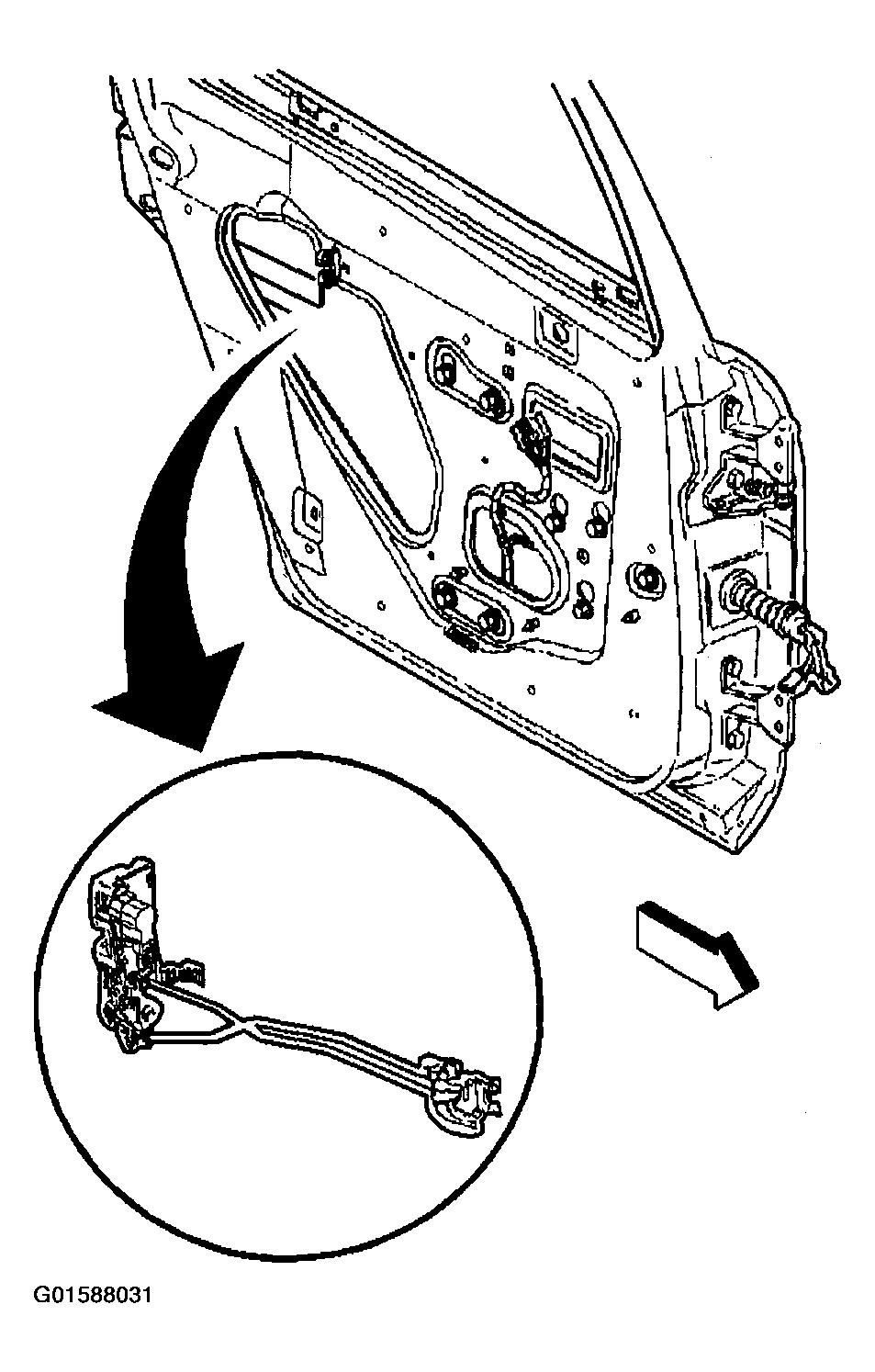

Fig 2: Removing Inside Handle Rod From Lock

Courtesy of GENERAL MOTORS CORP.
