Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door outside handle. Refer to DOOR HANDLE REPLACEMENT - FRONT OUTSIDE  .
  2. Remove the outside handle rod from door handle.

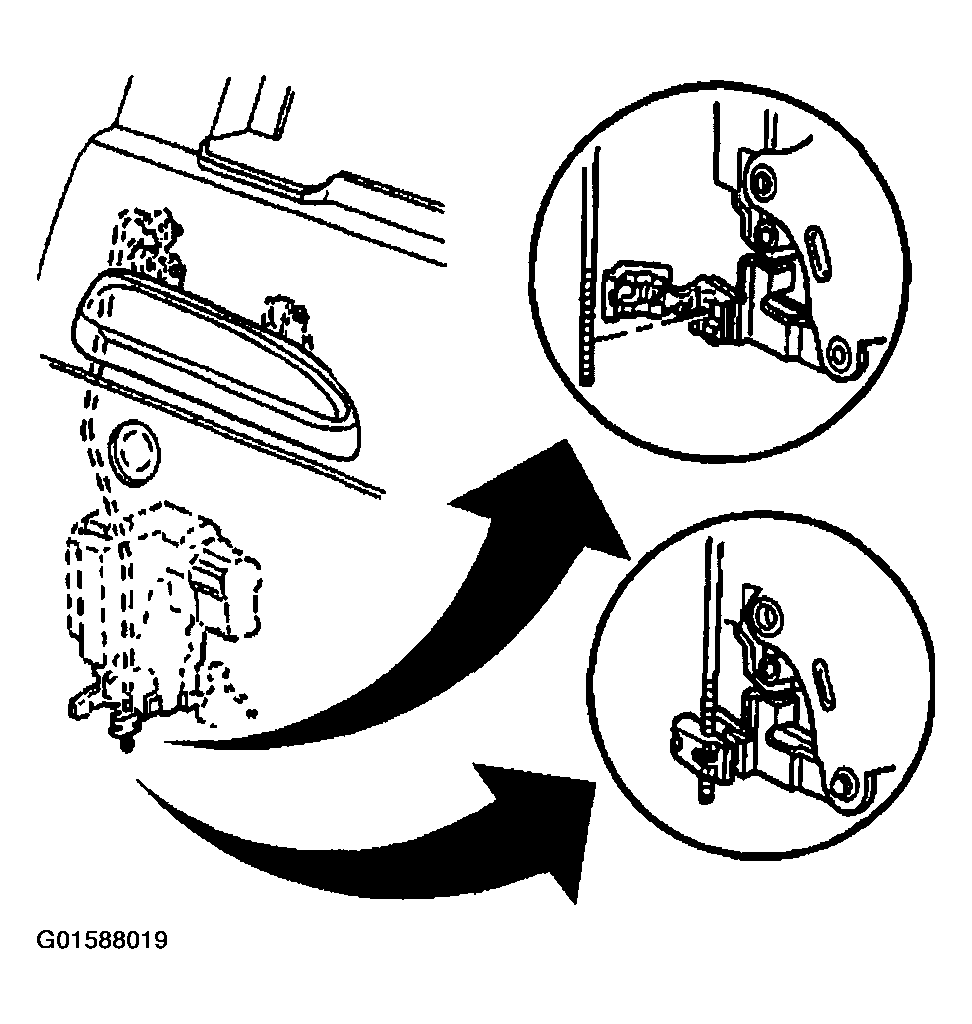

    3. Fig 1: Removing Outside Handle Rod From Door Handle
    G01588019Courtesy of GENERAL MOTORS CORP.
