Fore/Aft Adjustment
WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

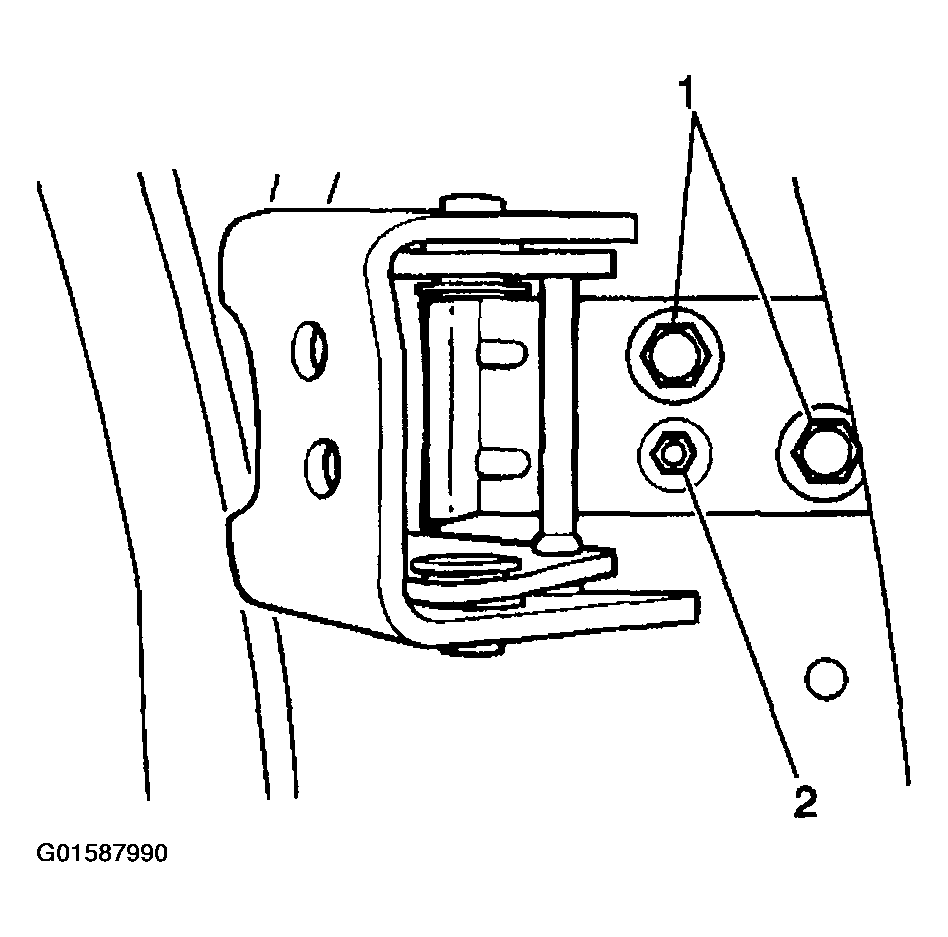

- Loosen the two 13 mm body side upper and lower hinge bolts (1). Do not remove them.
- Loosen the 10 mm cone adjuster body side hinge bolt (1).
- Adjust the door fore and aft by repositioning the door as needed.NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

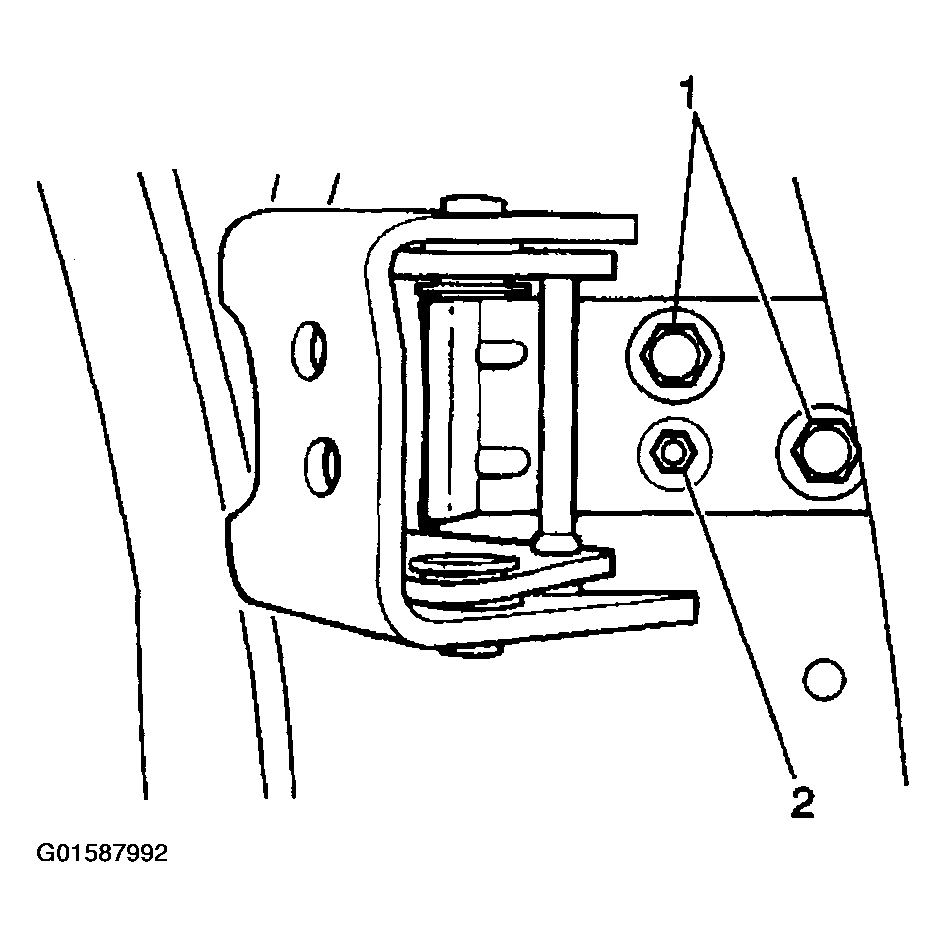

- Install the one 10 mm cone adjuster (1) body side hinge bolt.
Tighten
Tighten the cone adjuster body side hinge bolt to 10 N.m (89 lb in).
- Apply Locktite® Blue GM P/N 12345382, or Canadian P/N 10953489, or equivalent prior to installing the body side hinge bolts.
- Install two 13 mm body side hinge bolts (1).
Tighten
Tighten the body side hinge bolts to 33 N.m (24 lb ft).
