Passenger Door

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

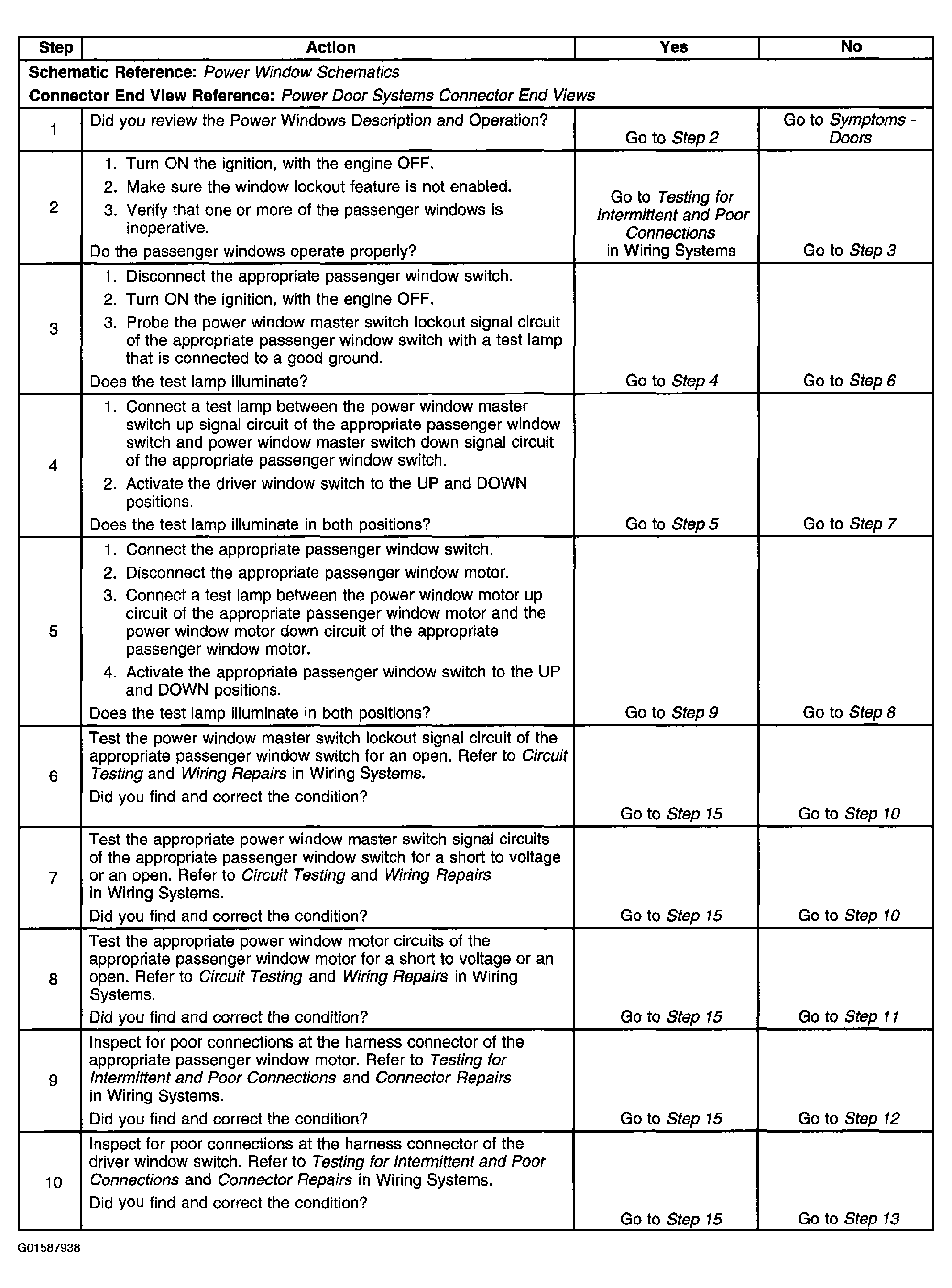

Fig 1: Passenger Door Diagnostic Procedure (Steps 1-10)
G01587938Courtesy of GENERAL MOTORS CORP.

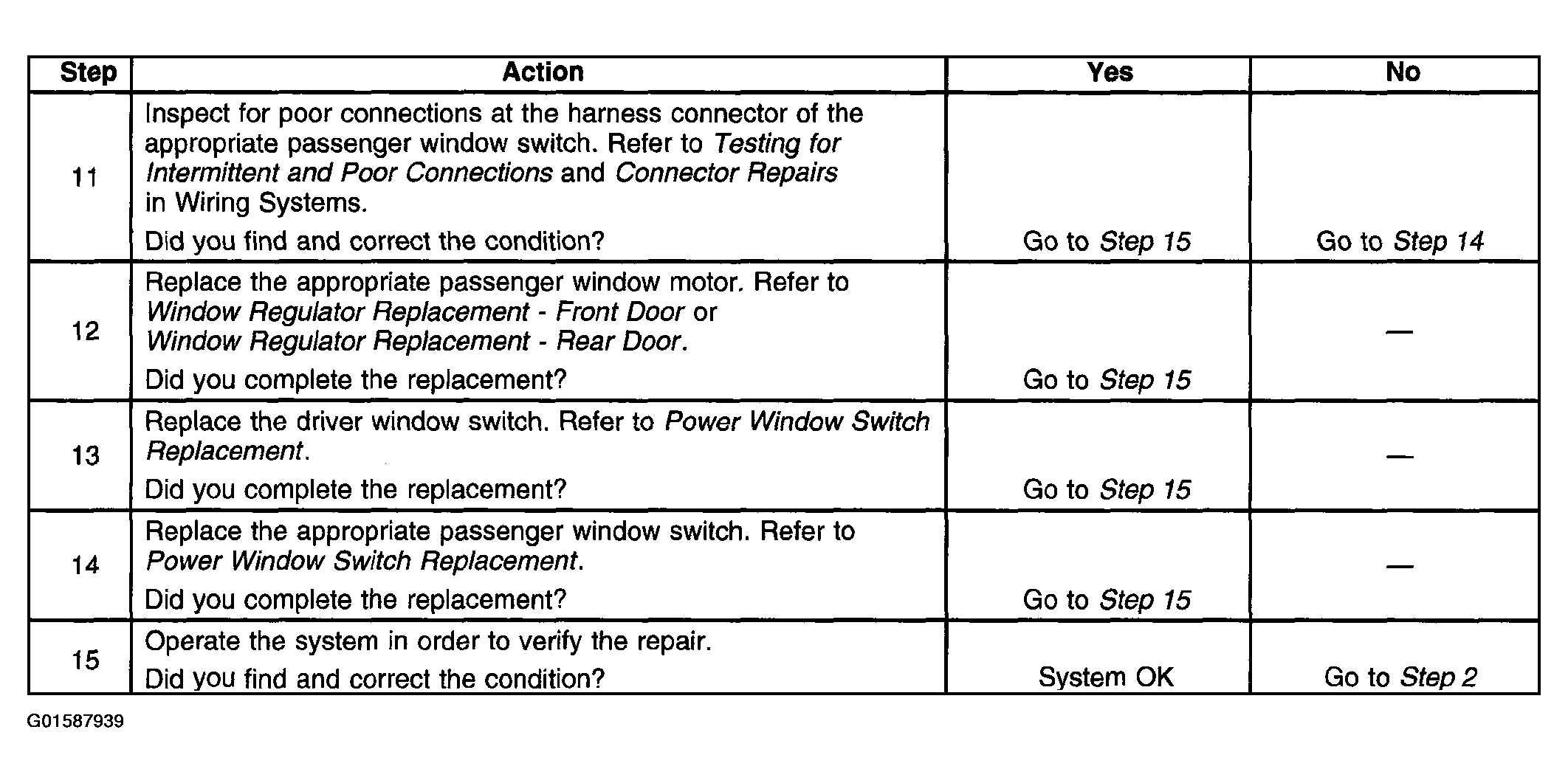

Fig 2: Passenger Door Diagnostic Procedure (Steps 11-15)
G01587939Courtesy of GENERAL MOTORS CORP.
